The B138 is a premium Classical V-belt measuring 0.656" wide x 139.8" long, featuring oil and heat resistant rubber construction.

B138 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 139.8" (3550.9mm)
• Inside Length: 138" (3505.2mm)
• Min Pulley Diameter: 5.4"

The B138 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The B191 is a premium Classical V-belt measuring 0.656" wide x 192.8" long, featuring oil and heat resistant rubber construction.

B191 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 192.8" (4897.1mm)
• Inside Length: 191" (4851.4mm)
• Min Pulley Diameter: 5.4"

The B191 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The B24 is a premium Classical V-belt measuring 0.656" wide x 25.8" long, featuring oil and heat resistant rubber construction.

B24 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 25.8" (655.3mm)
• Inside Length: 24" (609.6mm)
• Min Pulley Diameter: 5.4"

OEM Part Numbers Replaced by B24

• 27138

The B24 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

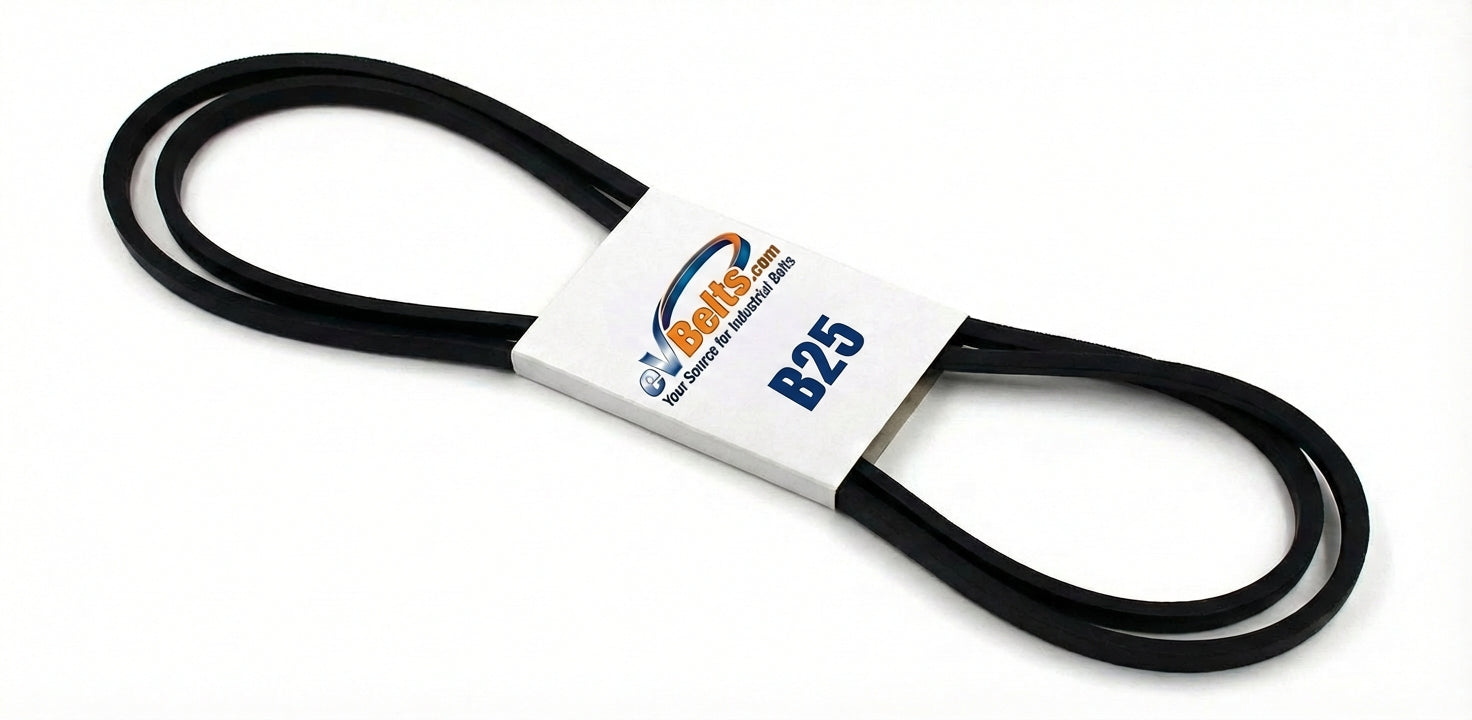

The B25 is a premium Classical V-belt measuring 0.656" wide x 26.8" long, featuring oil and heat resistant rubber construction.

B25 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 26.8" (680.7mm)
• Inside Length: 25" (635mm)
• Min Pulley Diameter: 5.4"

OEM Part Numbers Replaced by B25

• 13472
• 27144
• 3923300

The B25 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The B26 is a premium Classical V-belt measuring 0.656" wide x 27.8" long, featuring oil and heat resistant rubber construction.

B26 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 27.8" (706.1mm)
• Inside Length: 26" (660.4mm)
• Min Pulley Diameter: 5.4"

OEM Part Numbers Replaced by B26

• 7540157

The B26 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The B27 is a premium Classical V-belt measuring 0.656" wide x 28.8" long, featuring oil and heat resistant rubber construction.

B27 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 28.8" (731.5mm)
• Inside Length: 27" (685.8mm)
• Min Pulley Diameter: 5.4"

The B27 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The B360 is a premium Classical V-belt measuring 0.656" wide x 361.8" long, featuring oil and heat resistant rubber construction.

B360 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 361.8" (9189.7mm)
• Inside Length: 360" (9144mm)
• Min Pulley Diameter: 5.4"

The B360 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L230 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 23" long, featuring oil and heat resistant rubber construction.

5L230 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 23" (584.2mm)
• Inside Length: 20" (508mm)
• Min Pulley Diameter: 2.5"

OEM Part Numbers Replaced by 5L230

• 7540224
• SEARS ROEBUCK 529H

The 5L230 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L1000 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 100" long, featuring oil and heat resistant rubber construction.

5L1000 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 100" (2540mm)
• Inside Length: 97" (2463.8mm)
• Min Pulley Diameter: 2.5"

The 5L1000 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L240 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 24" long, featuring oil and heat resistant rubber construction.

5L240 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 24" (609.6mm)
• Inside Length: 21" (533.4mm)
• Min Pulley Diameter: 2.5"

OEM Part Numbers Replaced by 5L240

• BOLENS 1108536
• MONTGOMERY WARD 7540187
• UNICO 7540187
• WHITE OUTDOOR PRODUCTS 7540187
• YARD-MAN 7540187

The 5L240 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L250 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 25" long, featuring oil and heat resistant rubber construction.

5L250 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 25" (635mm)
• Inside Length: 22" (558.8mm)
• Min Pulley Diameter: 2.5"

The 5L250 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L260 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 26" long, featuring oil and heat resistant rubber construction.

5L260 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 26" (660.4mm)
• Inside Length: 23" (584.2mm)
• Min Pulley Diameter: 2.5"

The 5L260 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

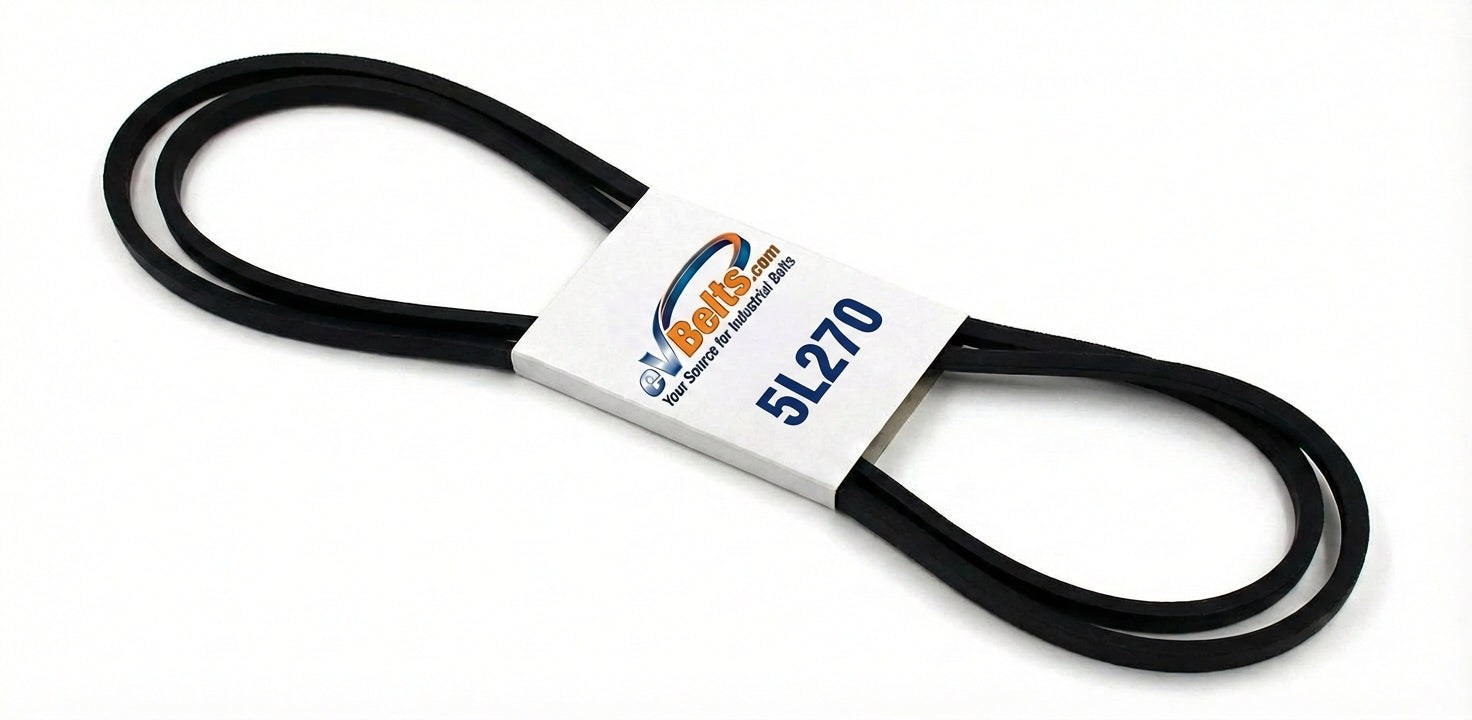

The 5L270 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 27" long, featuring oil and heat resistant rubber construction.

5L270 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 27" (685.8mm)
• Inside Length: 24" (609.6mm)
• Min Pulley Diameter: 2.5"

The 5L270 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L310 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 31" long, featuring oil and heat resistant rubber construction.

5L310 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 31" (787.4mm)
• Inside Length: 28" (711.2mm)
• Min Pulley Diameter: 2.5"

The 5L310 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L340 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 34" long, featuring oil and heat resistant rubber construction.

5L340 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 34" (863.6mm)
• Inside Length: 31" (787.4mm)
• Min Pulley Diameter: 2.5"

The 5L340 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L350 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 35" long, featuring oil and heat resistant rubber construction.

5L350 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 35" (889mm)
• Inside Length: 32" (812.8mm)
• Min Pulley Diameter: 2.5"

The 5L350 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L370 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 37" long, featuring oil and heat resistant rubber construction.

5L370 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 37" (939.8mm)
• Inside Length: 34" (863.6mm)
• Min Pulley Diameter: 2.5"

The 5L370 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L390 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 39" long, featuring oil and heat resistant rubber construction.

5L390 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 39" (990.6mm)
• Inside Length: 36" (914.4mm)
• Min Pulley Diameter: 2.5"

The 5L390 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L380 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 38" long, featuring oil and heat resistant rubber construction.

5L380 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 38" (965.2mm)
• Inside Length: 35" (889mm)
• Min Pulley Diameter: 2.5"

The 5L380 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L440 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 44" long, featuring oil and heat resistant rubber construction.

5L440 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 44" (1117.6mm)
• Inside Length: 41" (1041.4mm)
• Min Pulley Diameter: 2.5"

The 5L440 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L410 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 41" long, featuring oil and heat resistant rubber construction.

5L410 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 41" (1041.4mm)
• Inside Length: 38" (965.2mm)
• Min Pulley Diameter: 2.5"

The 5L410 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L480 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 48" long, featuring oil and heat resistant rubber construction.

5L480 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 48" (1219.2mm)
• Inside Length: 45" (1143mm)
• Min Pulley Diameter: 2.5"

The 5L480 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

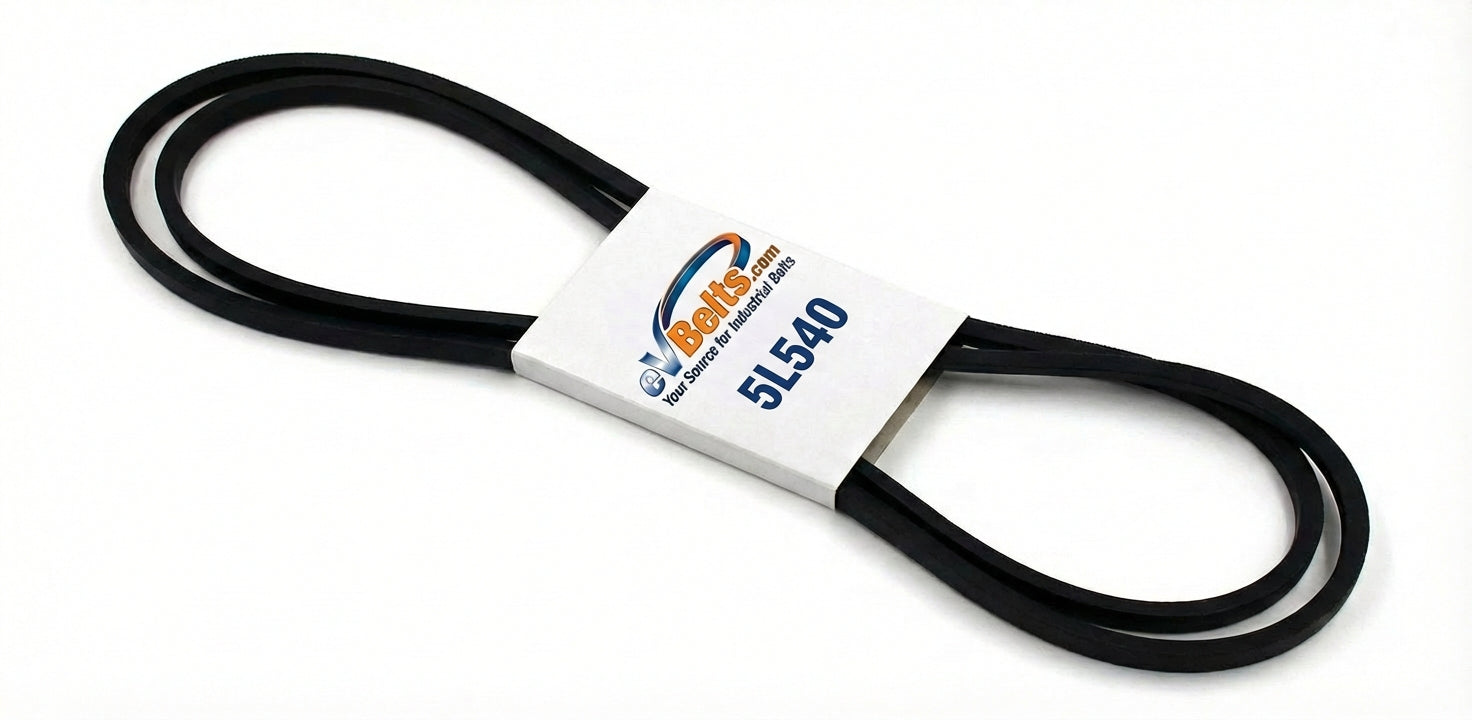

The 5L540 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 54" long, featuring oil and heat resistant rubber construction.

5L540 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 54" (1371.6mm)
• Inside Length: 51" (1295.4mm)
• Min Pulley Diameter: 2.5"

The 5L540 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L550 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 55" long, featuring oil and heat resistant rubber construction.

5L550 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 55" (1397mm)
• Inside Length: 52" (1320.8mm)
• Min Pulley Diameter: 2.5"

The 5L550 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

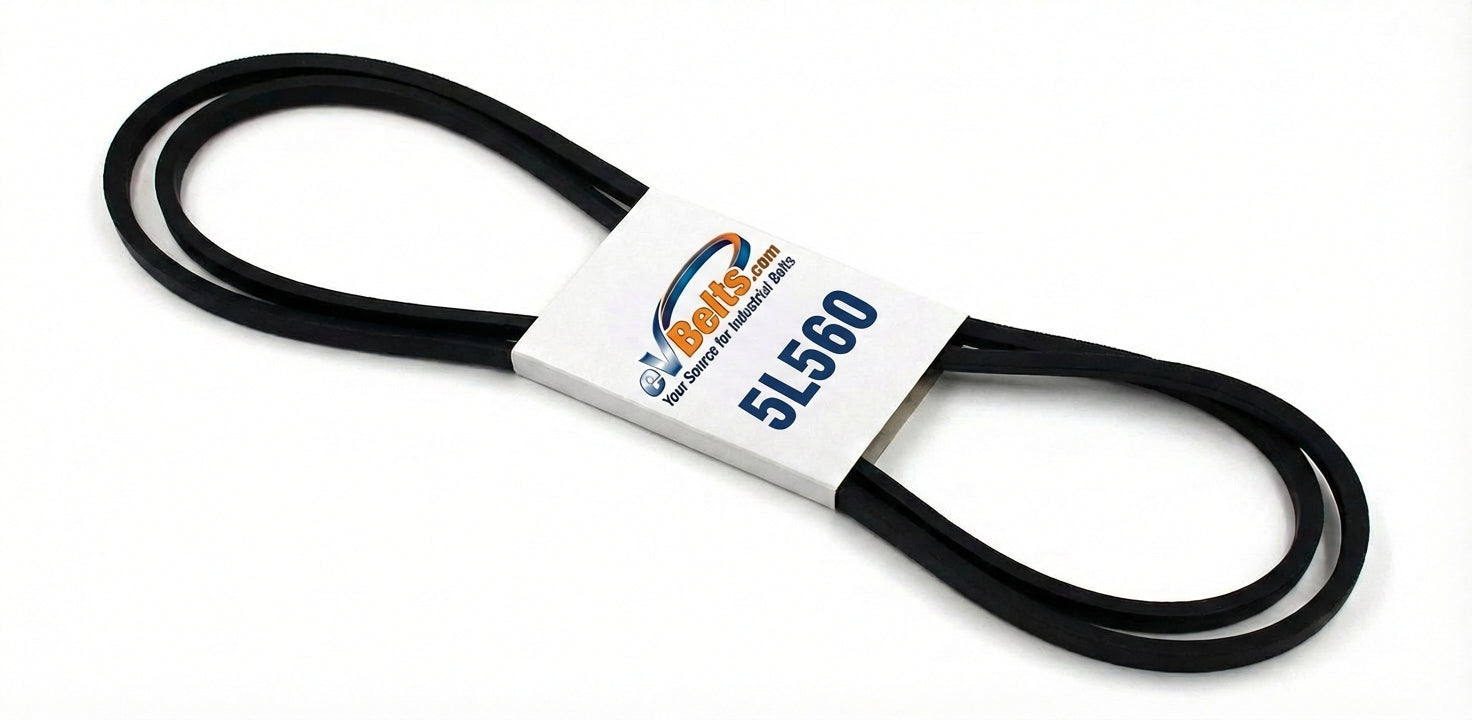

The 5L560 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 56" long, featuring oil and heat resistant rubber construction.

5L560 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 56" (1422.4mm)
• Inside Length: 53" (1346.2mm)
• Min Pulley Diameter: 2.5"

The 5L560 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L590 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 59" long, featuring oil and heat resistant rubber construction.

5L590 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 59" (1498.6mm)
• Inside Length: 56" (1422.4mm)
• Min Pulley Diameter: 2.5"

The 5L590 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L570 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 57" long, featuring oil and heat resistant rubber construction.

5L570 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 57" (1447.8mm)
• Inside Length: 54" (1371.6mm)
• Min Pulley Diameter: 2.5"

The 5L570 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

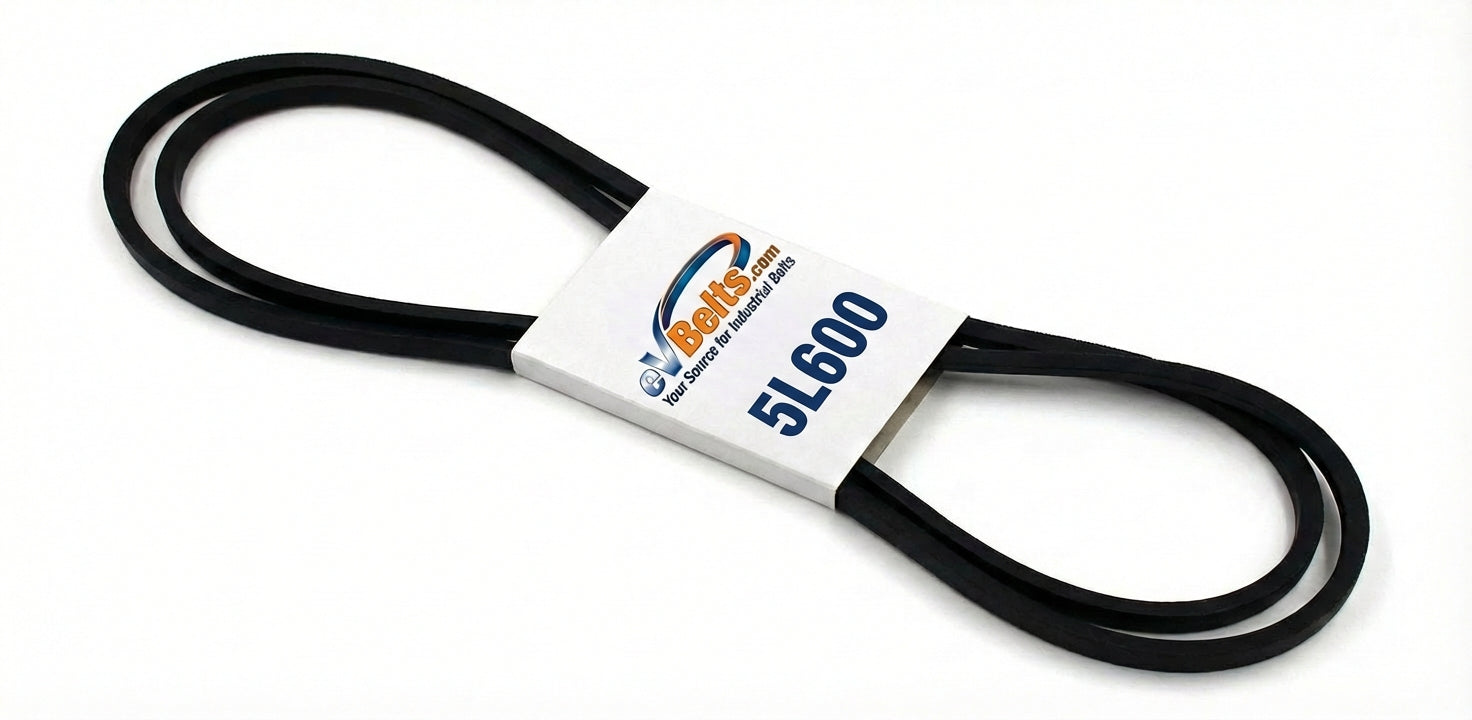

The 5L600 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 60" long, featuring oil and heat resistant rubber construction.

5L600 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 60" (1524mm)
• Inside Length: 57" (1447.8mm)
• Min Pulley Diameter: 2.5"

The 5L600 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L610 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 61" long, featuring oil and heat resistant rubber construction.

5L610 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 61" (1549.4mm)
• Inside Length: 58" (1473.2mm)
• Min Pulley Diameter: 2.5"

The 5L610 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.

The 5L630 is a premium Fractional Horsepower V-belt measuring 0.656" wide x 63" long, featuring oil and heat resistant rubber construction.

5L630 Specifications

• Top Width: 0.656" (16.66mm)
• Outside Length: 63" (1600.2mm)
• Inside Length: 60" (1524mm)
• Min Pulley Diameter: 2.5"

The 5L630 V-belt is suitable for HVAC systems, outdoor power equipment, shop machinery, pumps, fans, compressors, and general industrial applications.
