B24
B24
/
/

B24

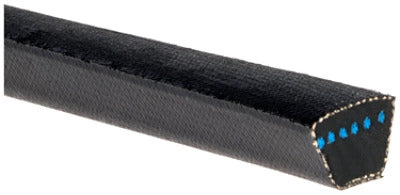

The B24 is a premium Classical V-belt measuring 0.656" wide x 25.8" long, featuring oil and heat resistant rubber construction.

SKU: 1249938

$2.63

241 In Stock

In stock and ready to ship

Estimated delivery between June 26 and June 28.

Technical Specifications
Part Number B24
Top Width 0.656 in / 16.66 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 24.0 in / 609.6 mm
Outside Length 25.8 in / 655.3 mm
Effective Length 25.4 in
Min Sheave Diameter 5.4 in / 137.2 mm
Replaces These OEM Part Numbers (1)

This belt replaces the following OEM part numbers:

27138
