16/B84

Top Width: 10.946" (278.03mm)
Outside Length: 85.8" (2179.3mm)
Inside Length: 84" (2133.6mm)
Min Pulley Diameter: 5.4"
Configuration: 16-Band Set

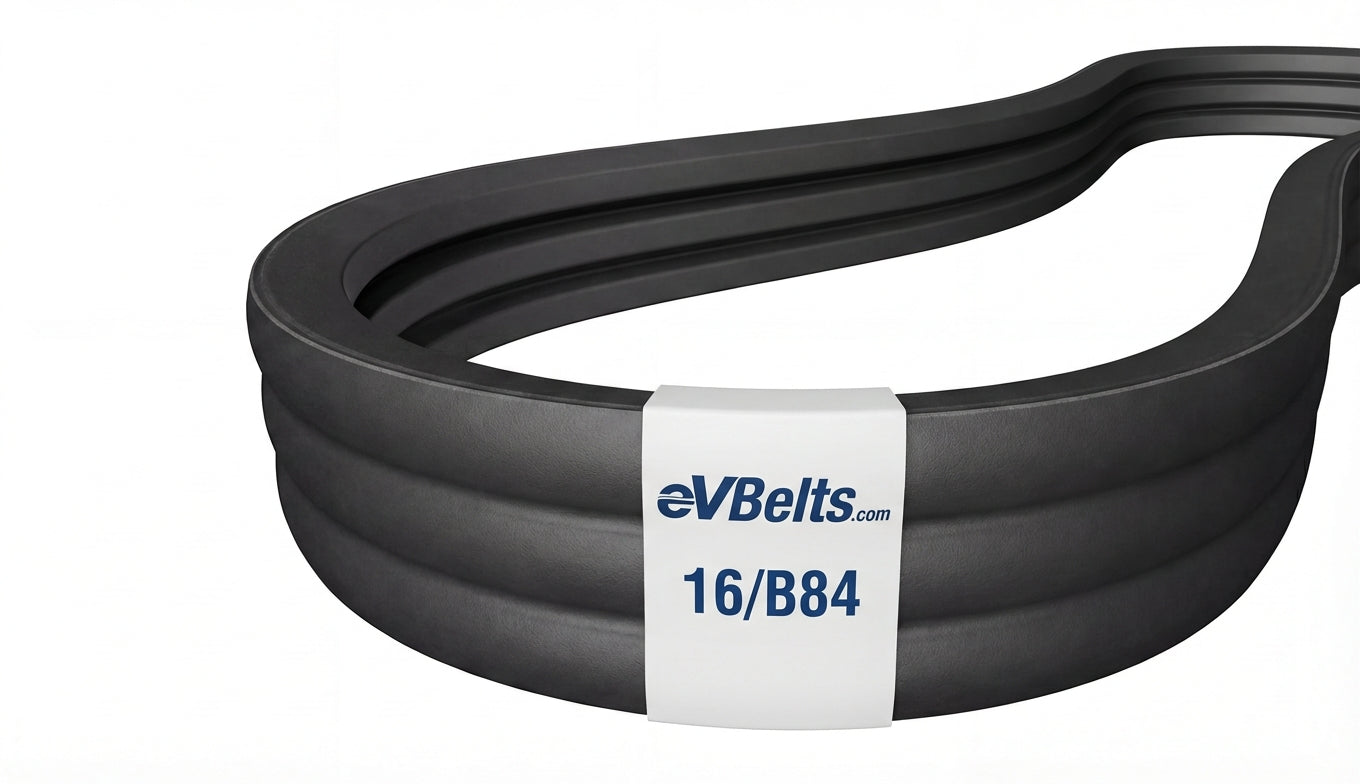

The 16/B84 is a factory-joined 16-band B banded belt assembly measuring 10.946" wide x 85.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214761

$265.37

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	16/B84
Top Width	10.946 in / 278.03 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	84.0 in / 2133.6 mm
Outside Length	85.8 in / 2179.3 mm
Effective Length	85.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	16
