16/B81

Top Width: 10.946" (278.03mm)
Outside Length: 82.8" (2103.1mm)
Inside Length: 81" (2057.4mm)
Min Pulley Diameter: 5.4"
Configuration: 16-Band Set

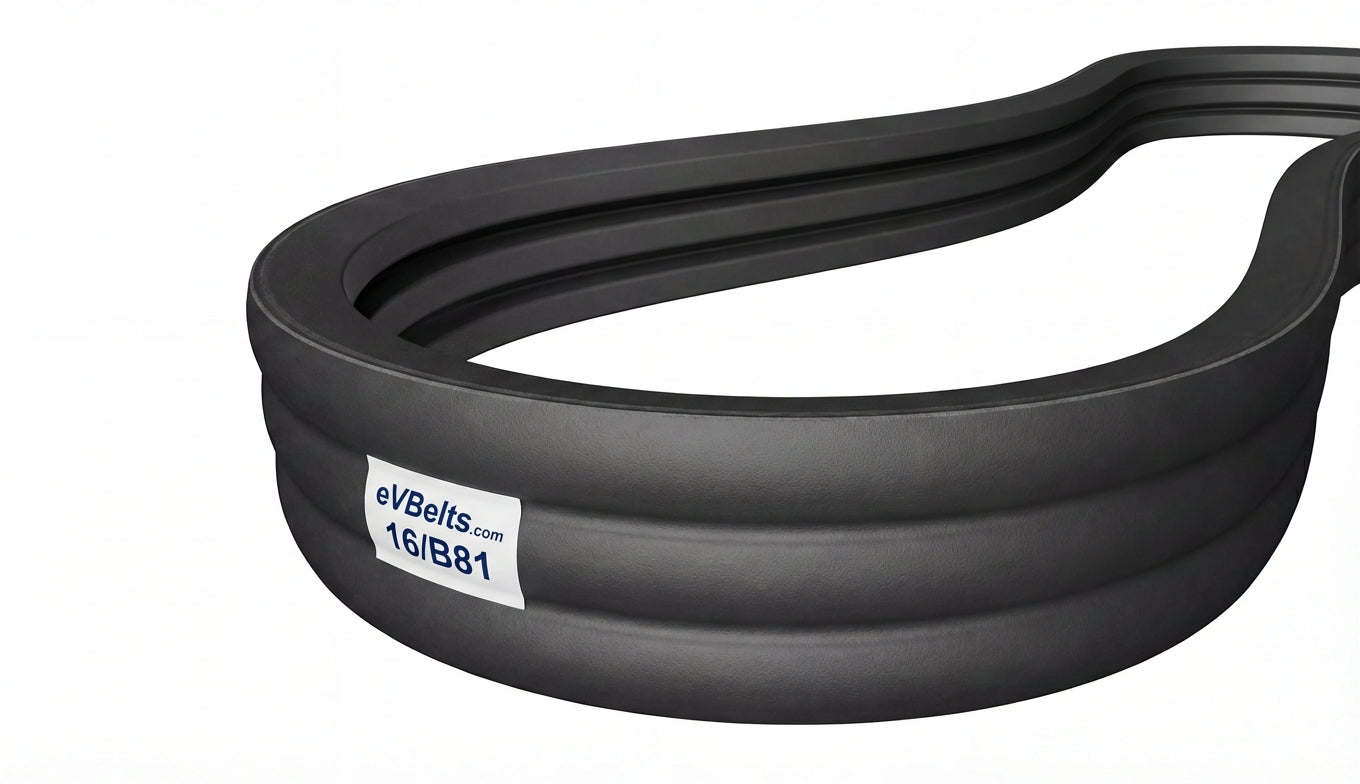

The 16/B81 is a factory-joined 16-band B banded belt assembly measuring 10.946" wide x 82.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214759

$254.65

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	16/B81
Top Width	10.946 in / 278.03 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	81.0 in / 2057.4 mm
Outside Length	82.8 in / 2103.1 mm
Effective Length	82.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	16
