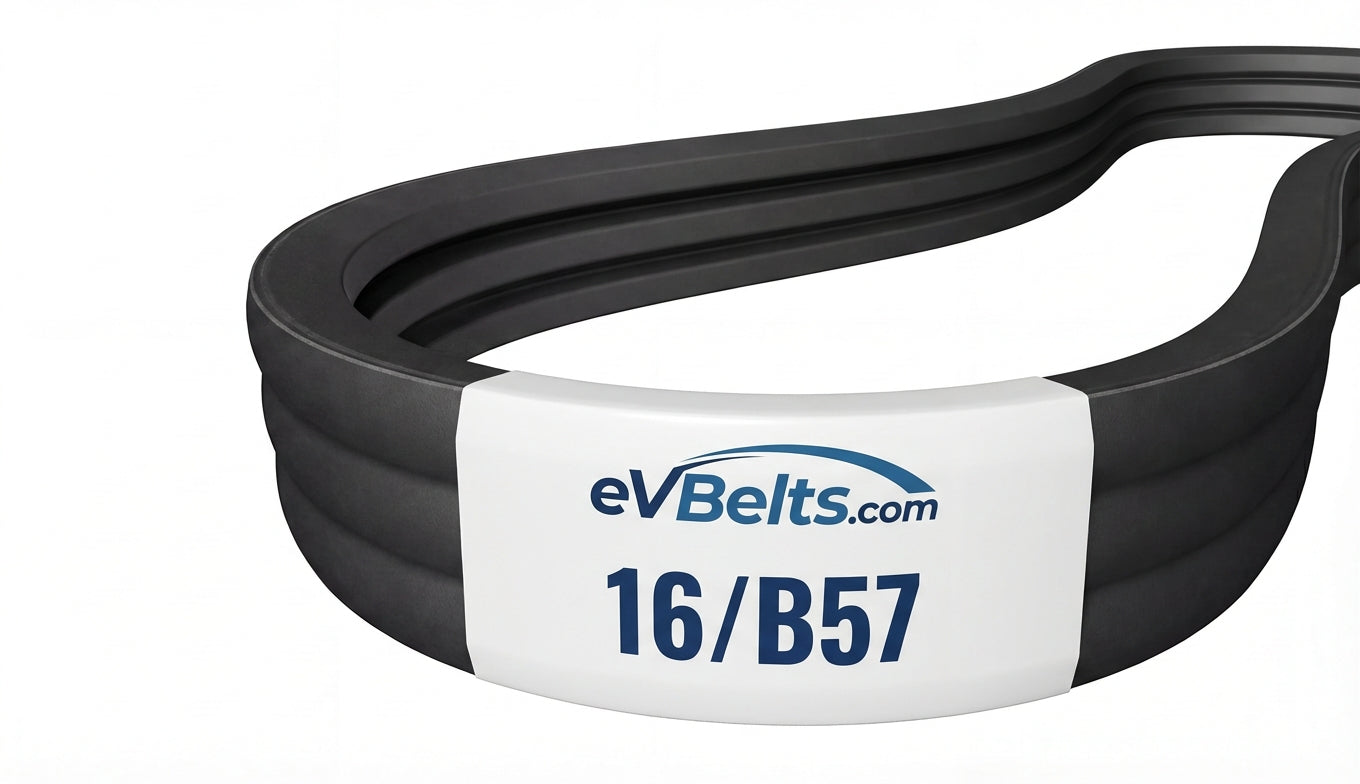

16/B57

Top Width: 10.946" (278.03mm)
Outside Length: 58.8" (1493.5mm)
Inside Length: 57" (1447.8mm)
Min Pulley Diameter: 5.4"
Configuration: 16-Band Set

The 16/B57 is a factory-joined 16-band B banded belt assembly measuring 10.946" wide x 58.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214738

$191.90

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	16/B57
Top Width	10.946 in / 278.03 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	57.0 in / 1447.8 mm
Outside Length	58.8 in / 1493.5 mm
Effective Length	58.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	16
