16/B190

Top Width: 10.946" (278.03mm)
Outside Length: 191.8" (4871.7mm)
Inside Length: 190" (4826mm)
Min Pulley Diameter: 5.4"
Configuration: 16-Band Set

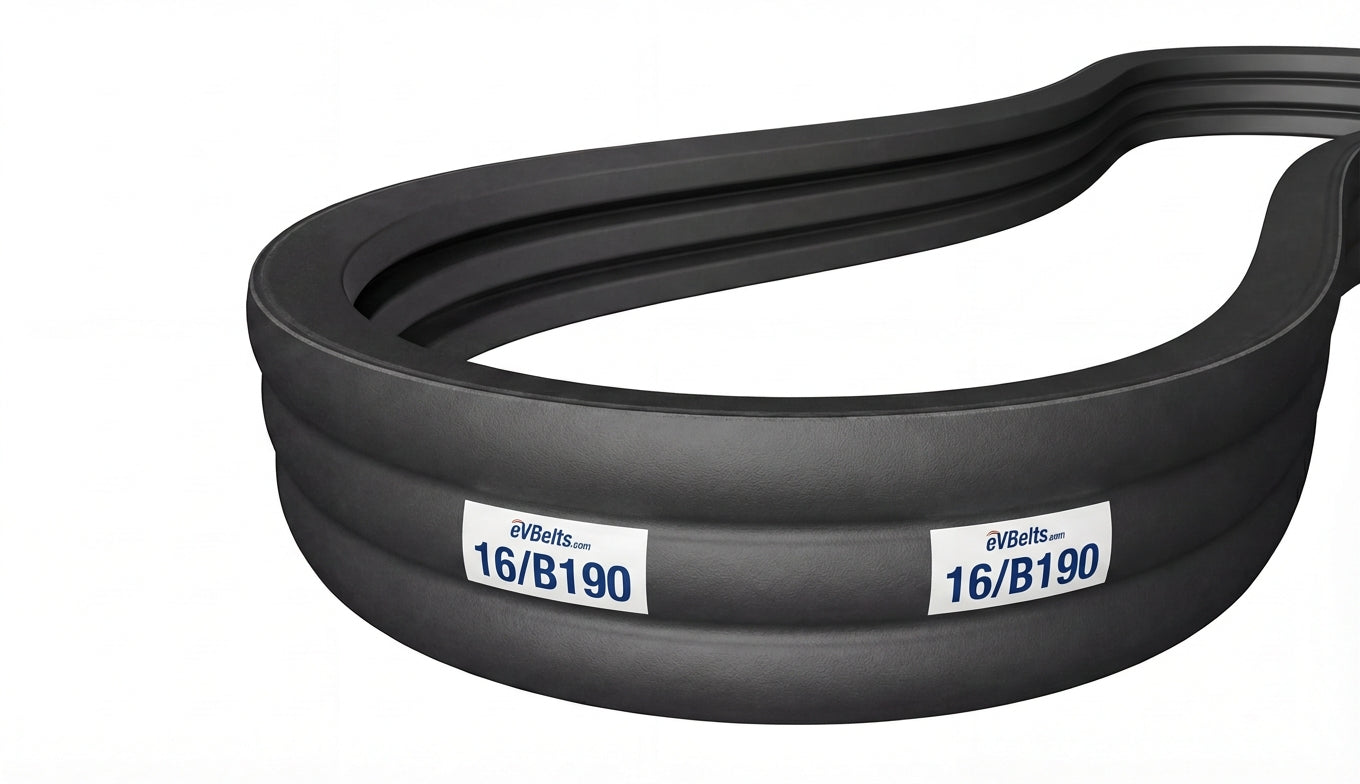

The 16/B190 is a factory-joined 16-band B banded belt assembly measuring 10.946" wide x 191.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214806

$591.86

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	16/B190
Top Width	10.946 in / 278.03 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	190.0 in / 4826.0 mm
Outside Length	191.8 in / 4871.7 mm
Effective Length	191.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	16
