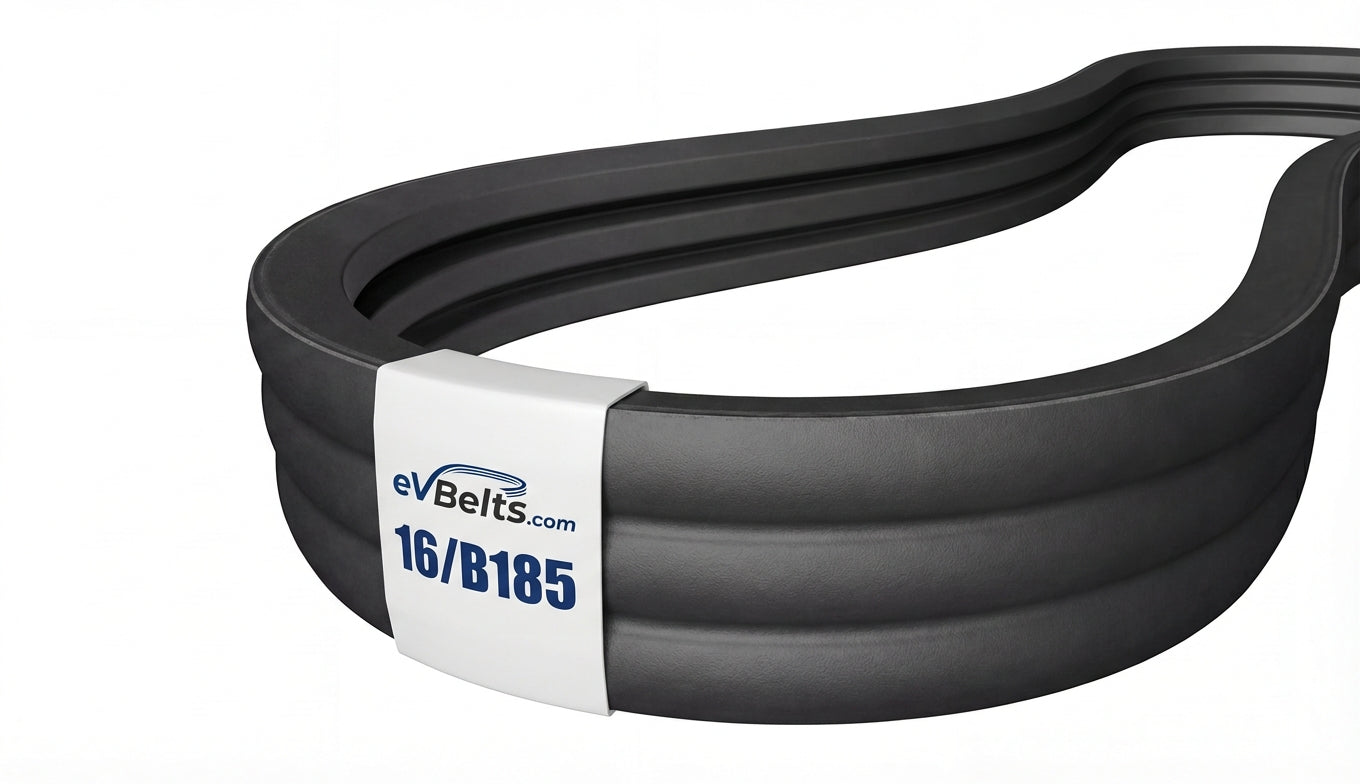

16/B185

Top Width: 10.946" (278.03mm)
Outside Length: 186.8" (4744.7mm)
Inside Length: 185" (4699mm)
Min Pulley Diameter: 5.4"
Configuration: 16-Band Set

The 16/B185 is a factory-joined 16-band B banded belt assembly measuring 10.946" wide x 186.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214807

$576.68

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	16/B185
Top Width	10.946 in / 278.03 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	185.0 in / 4699.0 mm
Outside Length	186.8 in / 4744.7 mm
Effective Length	186.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	16
