16/B158

Top Width: 10.946" (278.03mm)
Outside Length: 159.8" (4058.9mm)
Inside Length: 158" (4013.2mm)
Min Pulley Diameter: 5.4"
Configuration: 16-Band Set

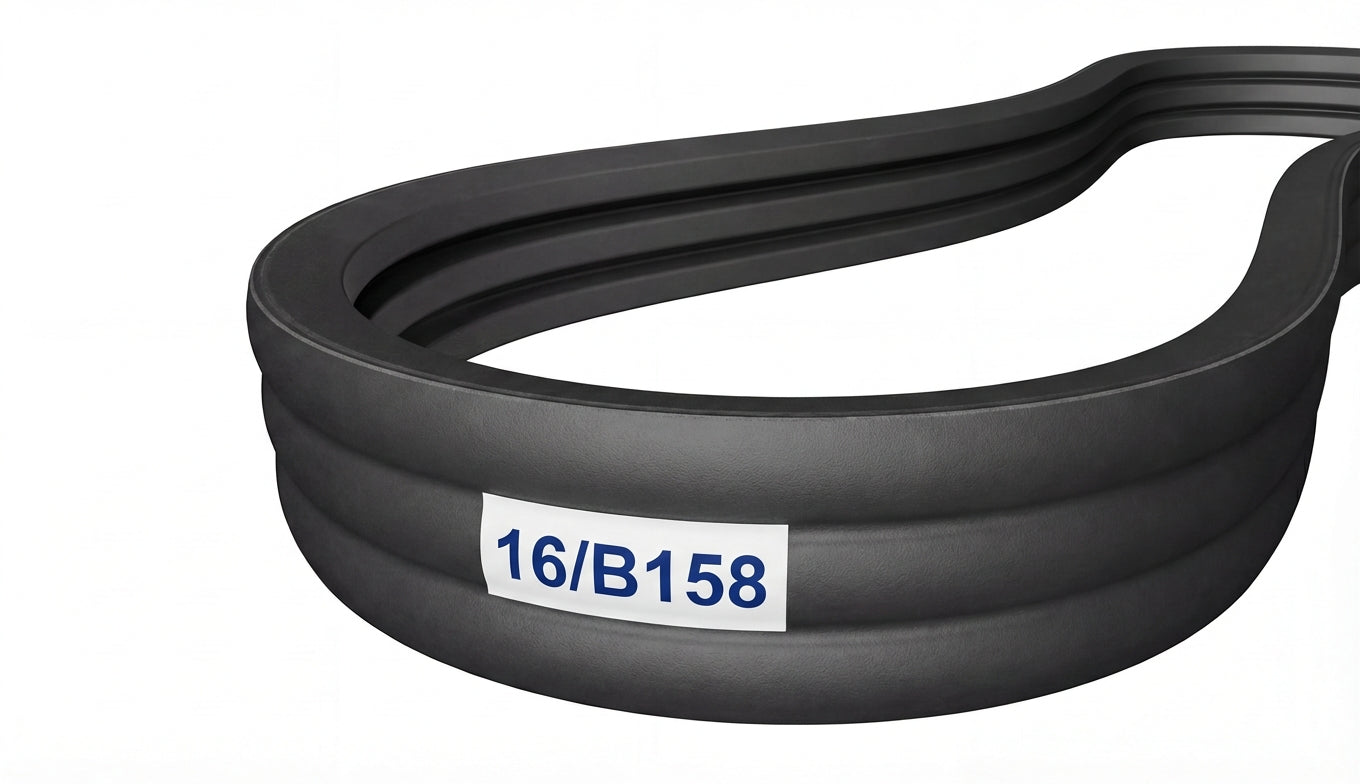

The 16/B158 is a factory-joined 16-band B banded belt assembly measuring 10.946" wide x 159.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214801

$510.86

0 In Stock

In stock and ready to ship

Estimated delivery between June 24 and June 26.

Technical Specifications

Part Number	16/B158
Top Width	10.946 in / 278.03 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	158.0 in / 4013.2 mm
Outside Length	159.8 in / 4058.9 mm
Effective Length	159.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	16
