15/B93

Top Width: 10.26" (260.6mm)
Outside Length: 94.8" (2407.9mm)
Inside Length: 93" (2362.2mm)
Min Pulley Diameter: 5.4"
Configuration: 15-Band Set

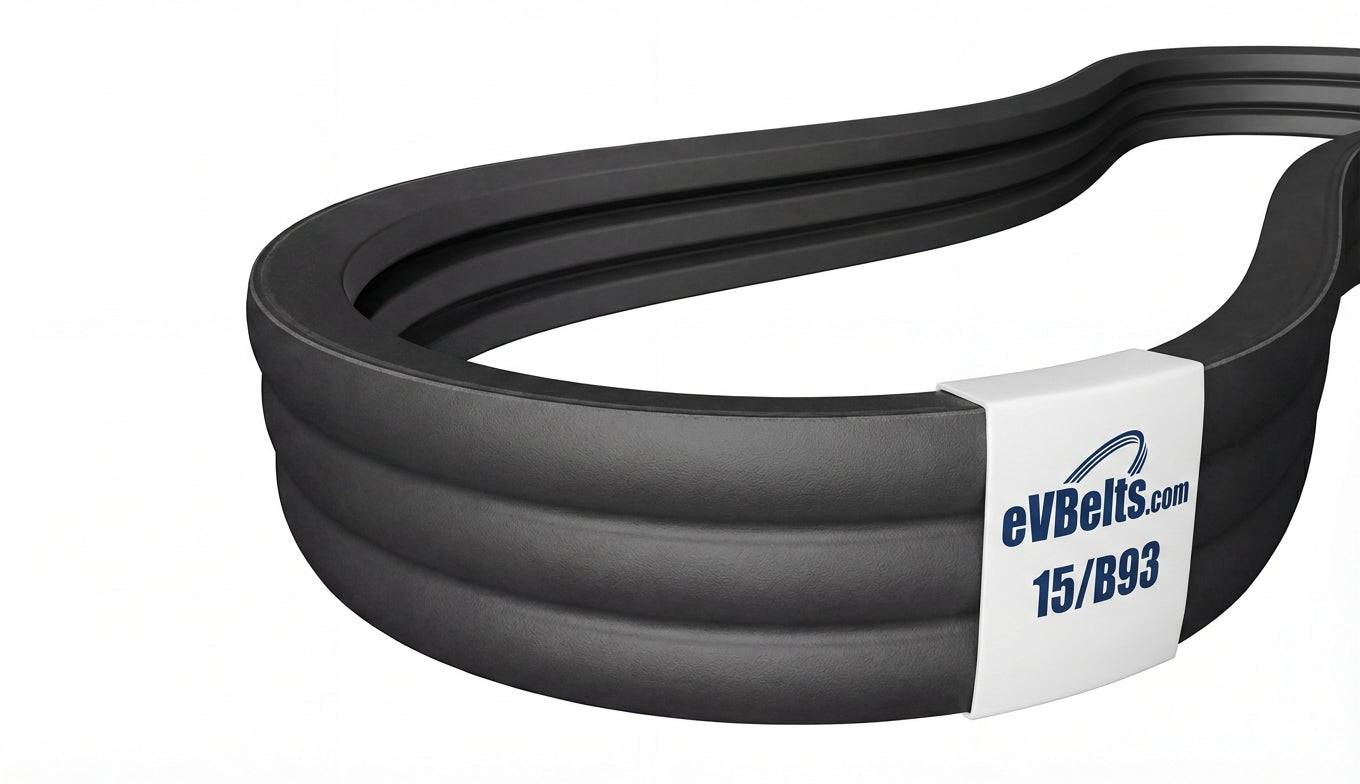

The 15/B93 is a factory-joined 15-band B banded belt assembly measuring 10.26" wide x 94.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214672

$275.42

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	15/B93
Top Width	10.26 in / 260.6 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	93.0 in / 2362.2 mm
Outside Length	94.8 in / 2407.9 mm
Effective Length	94.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	15
