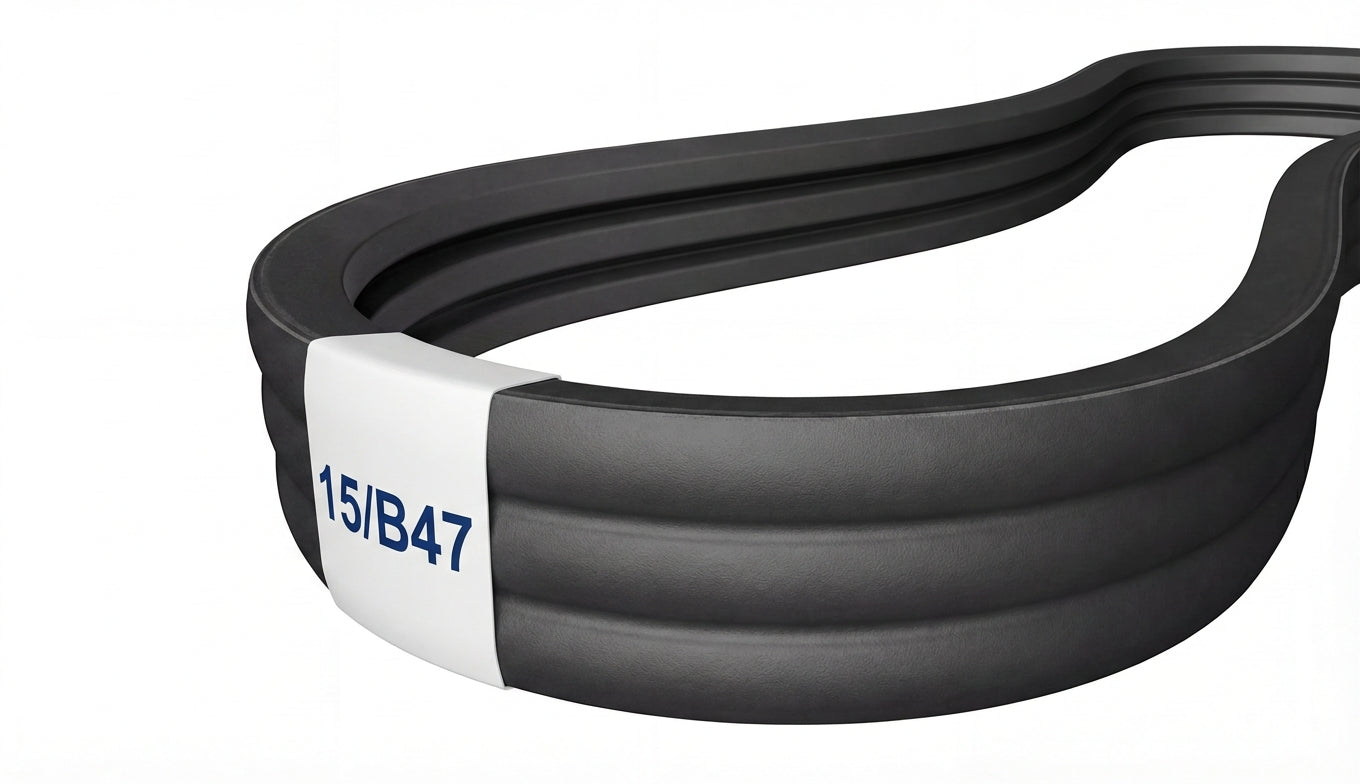

15/B47

Top Width: 10.26" (260.6mm)
Outside Length: 48.8" (1239.5mm)
Inside Length: 47" (1193.8mm)
Min Pulley Diameter: 5.4"
Configuration: 15-Band Set

The 15/B47 is a factory-joined 15-band B banded belt assembly measuring 10.26" wide x 48.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214630

$161.64

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	15/B47
Top Width	10.26 in / 260.6 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	47.0 in / 1193.8 mm
Outside Length	48.8 in / 1239.5 mm
Effective Length	48.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	15
