14/B54

Top Width: 9.574" (243.18mm)
Outside Length: 55.8" (1417.3mm)
Inside Length: 54" (1371.6mm)
Min Pulley Diameter: 5.4"
Configuration: 14-Band Set

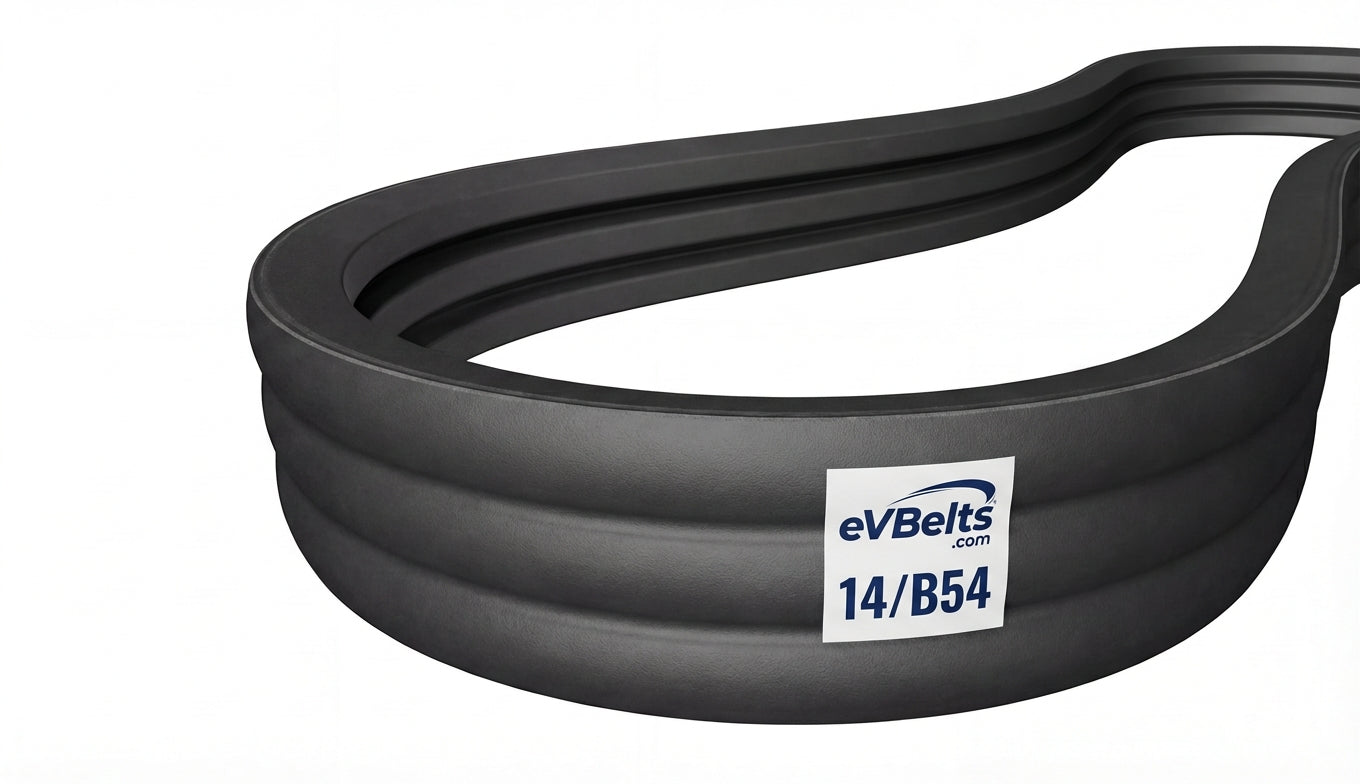

The 14/B54 is a factory-joined 14-band B banded belt assembly measuring 9.574" wide x 55.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214542

$164.45

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	14/B54
Top Width	9.574 in / 243.18 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	54.0 in / 1371.6 mm
Outside Length	55.8 in / 1417.3 mm
Effective Length	55.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	14
