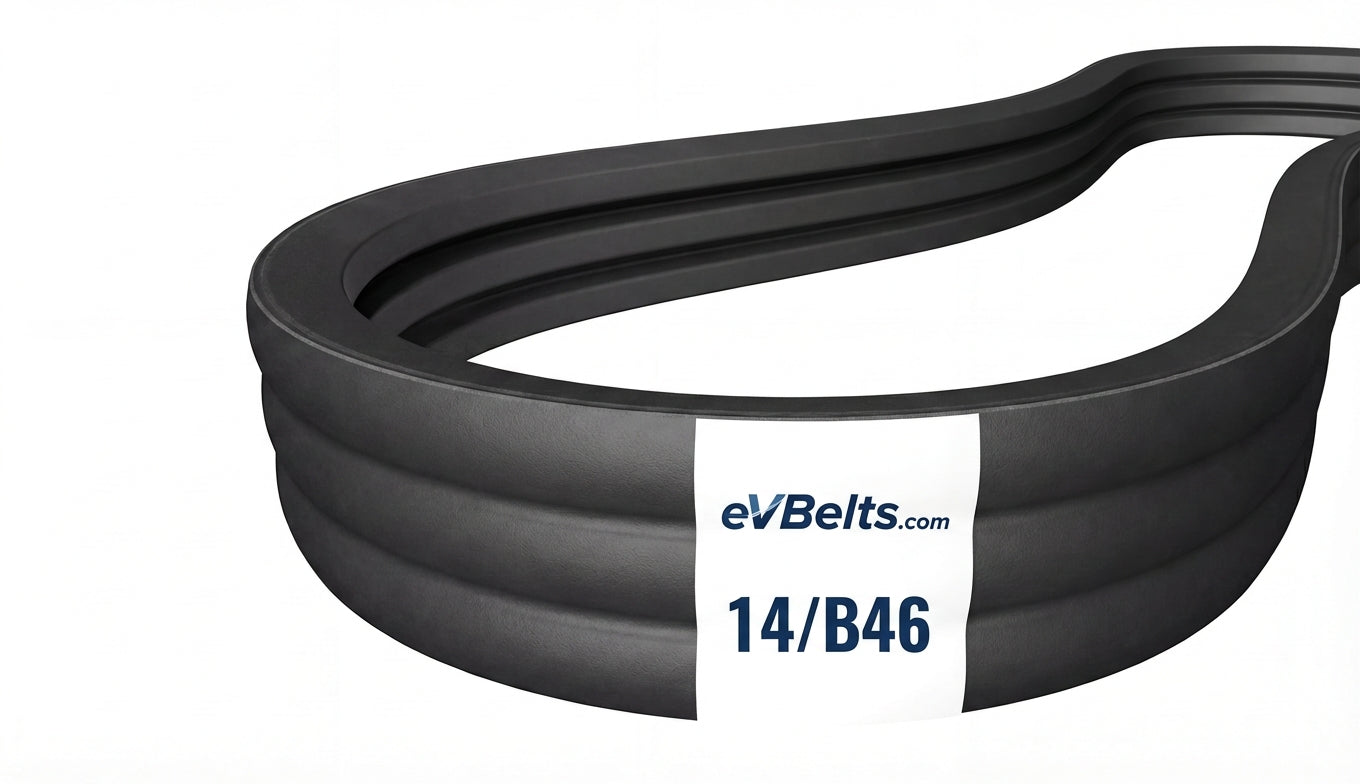

14/B46

Top Width: 9.574" (243.18mm)
Outside Length: 47.8" (1214.1mm)
Inside Length: 46" (1168.4mm)
Min Pulley Diameter: 5.4"
Configuration: 14-Band Set

The 14/B46 is a factory-joined 14-band B banded belt assembly measuring 9.574" wide x 47.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214536

$148.53

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	14/B46
Top Width	9.574 in / 243.18 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	46.0 in / 1168.4 mm
Outside Length	47.8 in / 1214.1 mm
Effective Length	47.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	14
