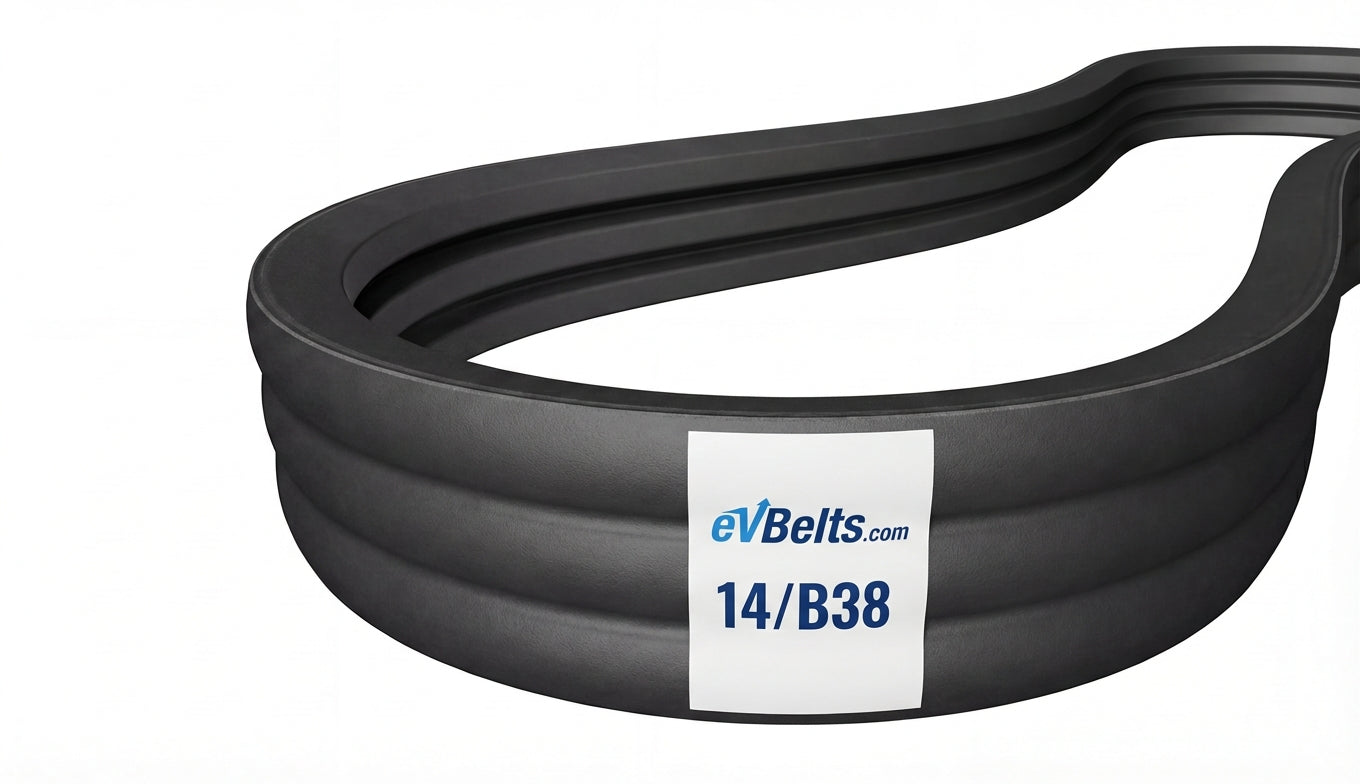

14/B38

Top Width: 9.574" (243.18mm)
Outside Length: 39.8" (1010.9mm)
Inside Length: 38" (965.2mm)
Min Pulley Diameter: 5.4"
Configuration: 14-Band Set

The 14/B38 is a factory-joined 14-band B banded belt assembly measuring 9.574" wide x 39.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214530

$125.73

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	14/B38
Top Width	9.574 in / 243.18 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	38.0 in / 965.2 mm
Outside Length	39.8 in / 1010.9 mm
Effective Length	39.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	14
