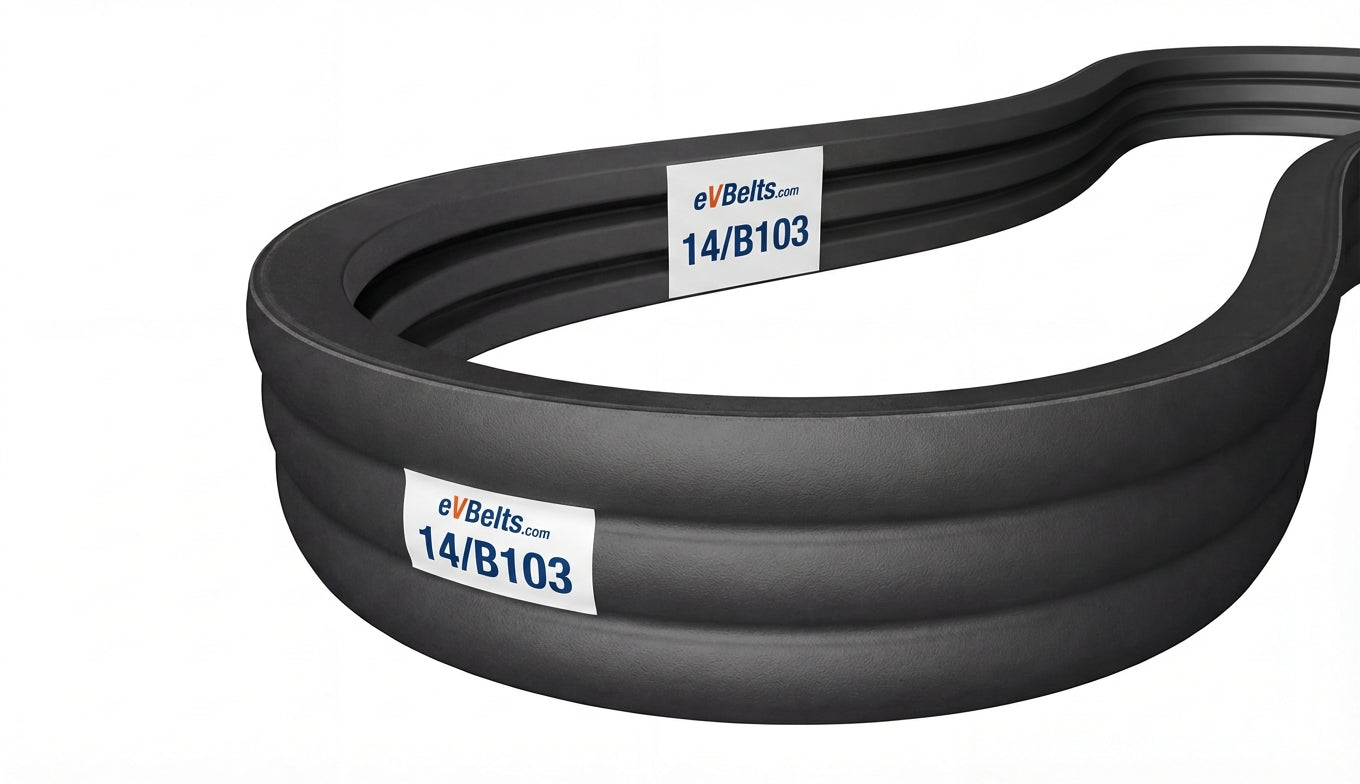

14/B103

Top Width: 9.574" (243.18mm)
Outside Length: 104.8" (2661.9mm)
Inside Length: 103" (2616.2mm)
Min Pulley Diameter: 5.4"
Configuration: 14-Band Set

The 14/B103 is a factory-joined 14-band B banded belt assembly measuring 9.574" wide x 104.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214584

$279.86

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	14/B103
Top Width	9.574 in / 243.18 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	103.0 in / 2616.2 mm
Outside Length	104.8 in / 2661.9 mm
Effective Length	104.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	14
