13/B88

Top Width: 8.888" (225.76mm)
Outside Length: 89.8" (2280.9mm)
Inside Length: 88" (2235.2mm)
Min Pulley Diameter: 5.4"
Configuration: 13-Band Set

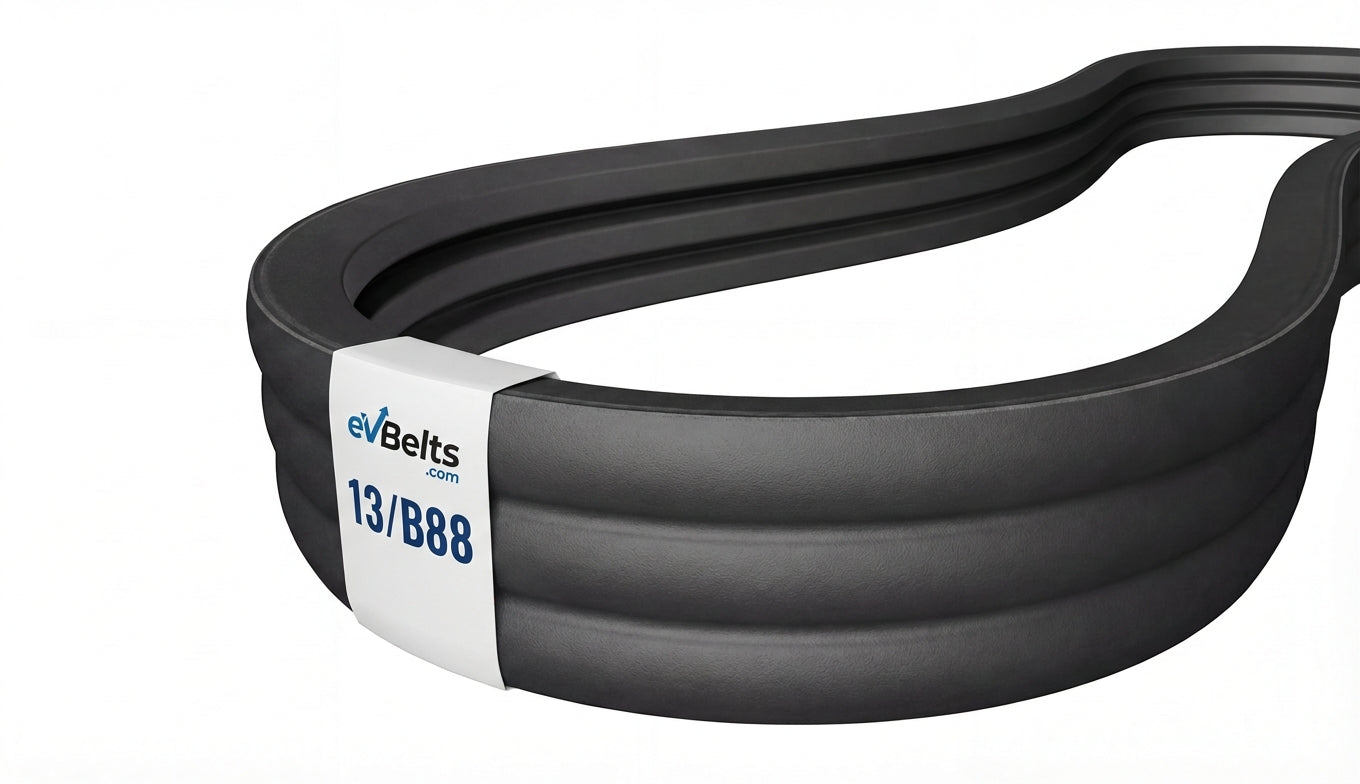

The 13/B88 is a factory-joined 13-band B banded belt assembly measuring 8.888" wide x 89.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214478

$223.86

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	13/B88
Top Width	8.888 in / 225.76 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	88.0 in / 2235.2 mm
Outside Length	89.8 in / 2280.9 mm
Effective Length	89.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	13
