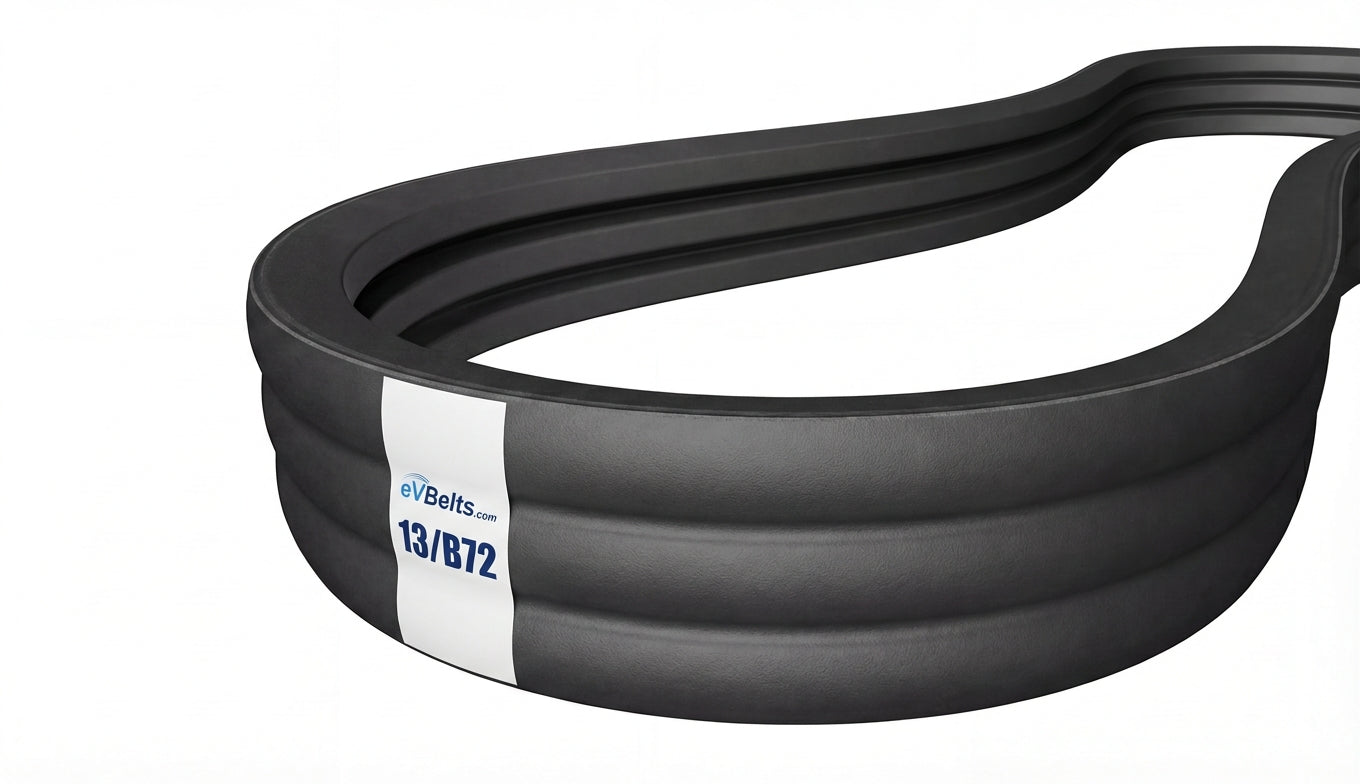

13/B72

Top Width: 8.888" (225.76mm)
Outside Length: 73.8" (1874.5mm)
Inside Length: 72" (1828.8mm)
Min Pulley Diameter: 5.4"
Configuration: 13-Band Set

The 13/B72 is a factory-joined 13-band B banded belt assembly measuring 8.888" wide x 73.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214462

$184.08

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	13/B72
Top Width	8.888 in / 225.76 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	72.0 in / 1828.8 mm
Outside Length	73.8 in / 1874.5 mm
Effective Length	73.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	13
