13/B70

Top Width: 8.888" (225.76mm)
Outside Length: 71.8" (1823.7mm)
Inside Length: 70" (1778mm)
Min Pulley Diameter: 5.4"
Configuration: 13-Band Set

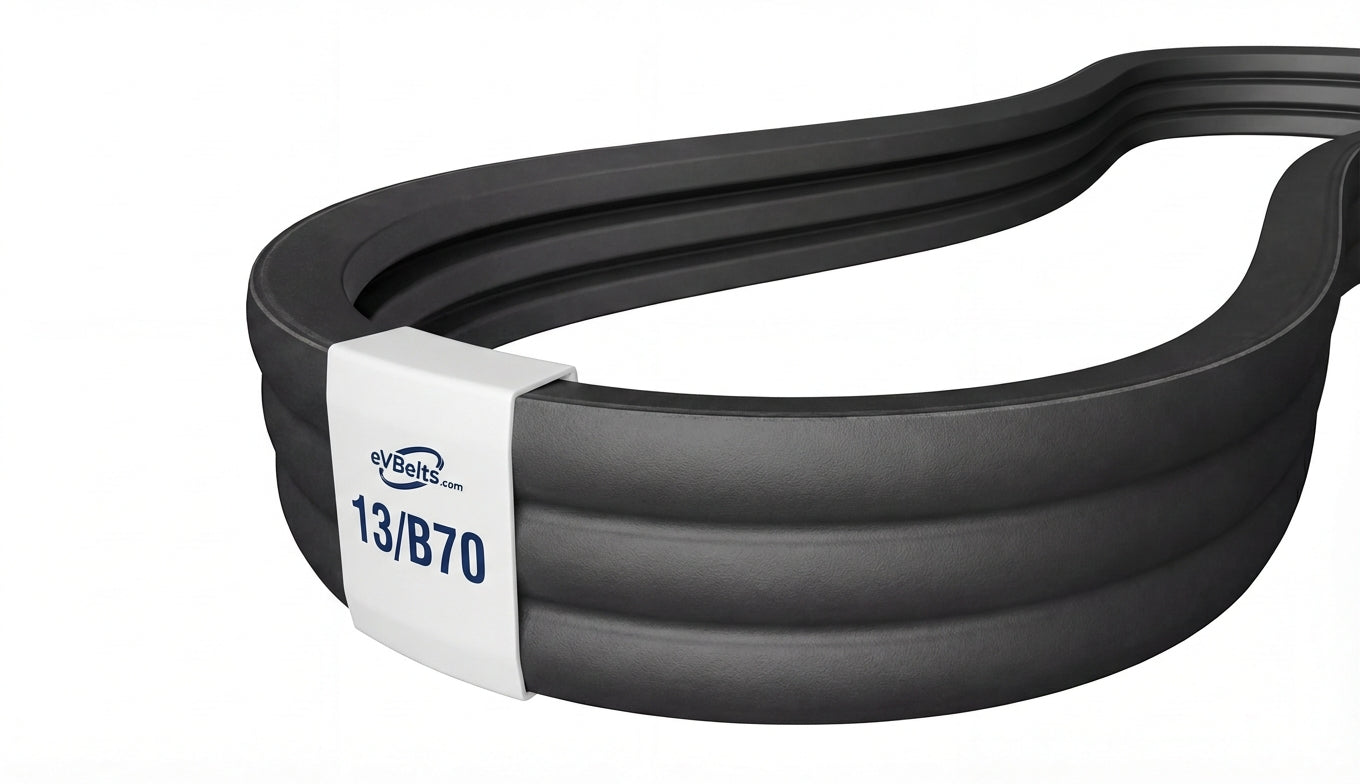

The 13/B70 is a factory-joined 13-band B banded belt assembly measuring 8.888" wide x 71.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214461

$178.67

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	13/B70
Top Width	8.888 in / 225.76 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	70.0 in / 1778.0 mm
Outside Length	71.8 in / 1823.7 mm
Effective Length	71.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	13
