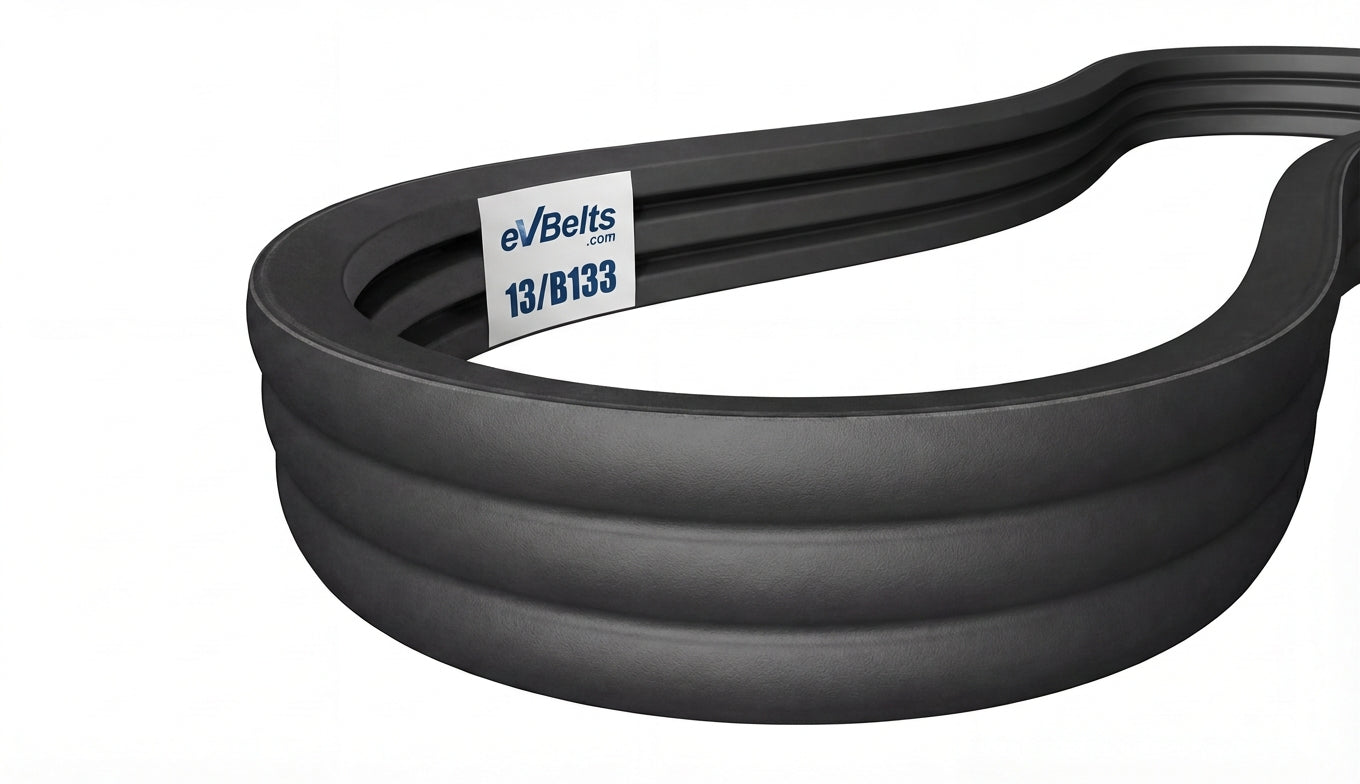

13/B133

Top Width: 8.888" (225.76mm)
Outside Length: 134.8" (3423.9mm)
Inside Length: 133" (3378.2mm)
Min Pulley Diameter: 5.4"
Configuration: 13-Band Set

The 13/B133 is a factory-joined 13-band B banded belt assembly measuring 8.888" wide x 134.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214504

$339.41

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	13/B133
Top Width	8.888 in / 225.76 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	133.0 in / 3378.2 mm
Outside Length	134.8 in / 3423.9 mm
Effective Length	134.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	13
