13/B116

Top Width: 8.888" (225.76mm)
Outside Length: 117.8" (2992.1mm)
Inside Length: 116" (2946.4mm)
Min Pulley Diameter: 5.4"
Configuration: 13-Band Set

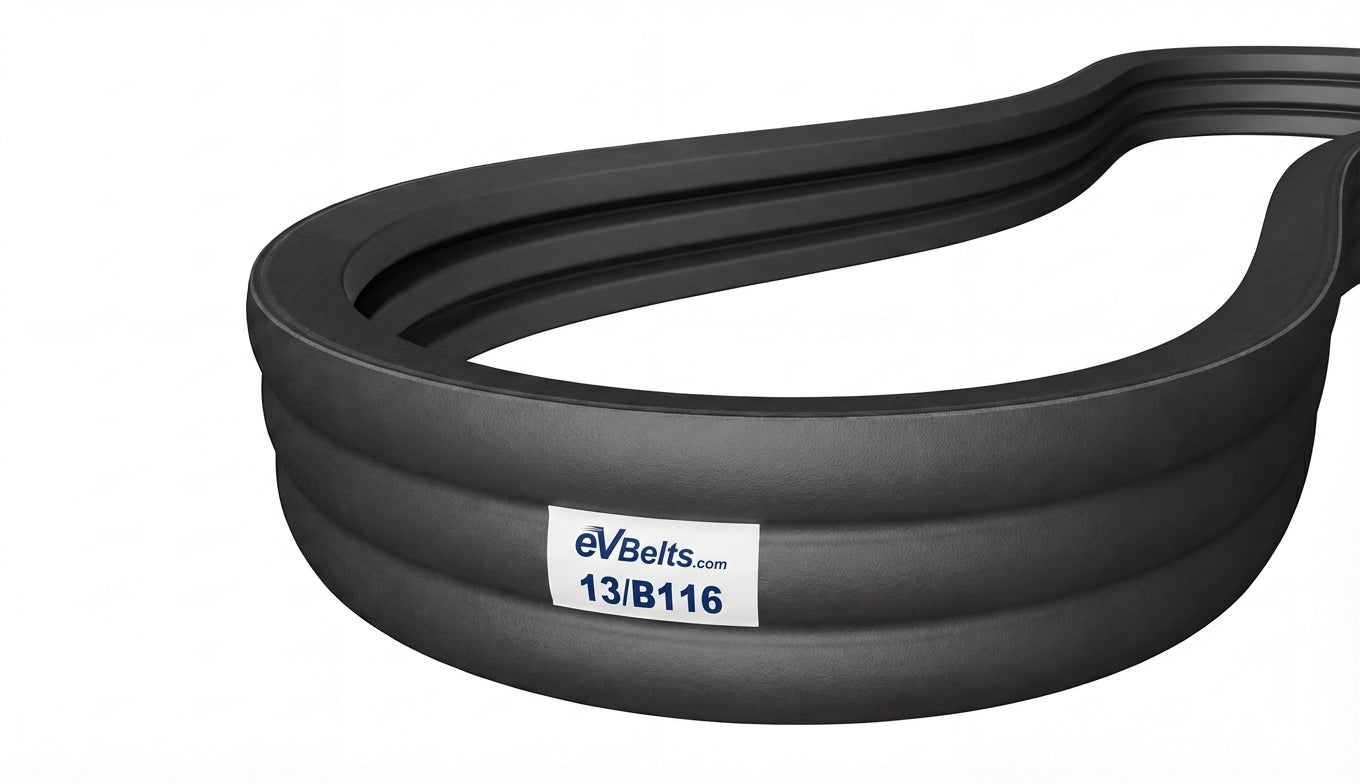

The 13/B116 is a factory-joined 13-band B banded belt assembly measuring 8.888" wide x 117.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214497

$280.38

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	13/B116
Top Width	8.888 in / 225.76 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	116.0 in / 2946.4 mm
Outside Length	117.8 in / 2992.1 mm
Effective Length	117.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	13
