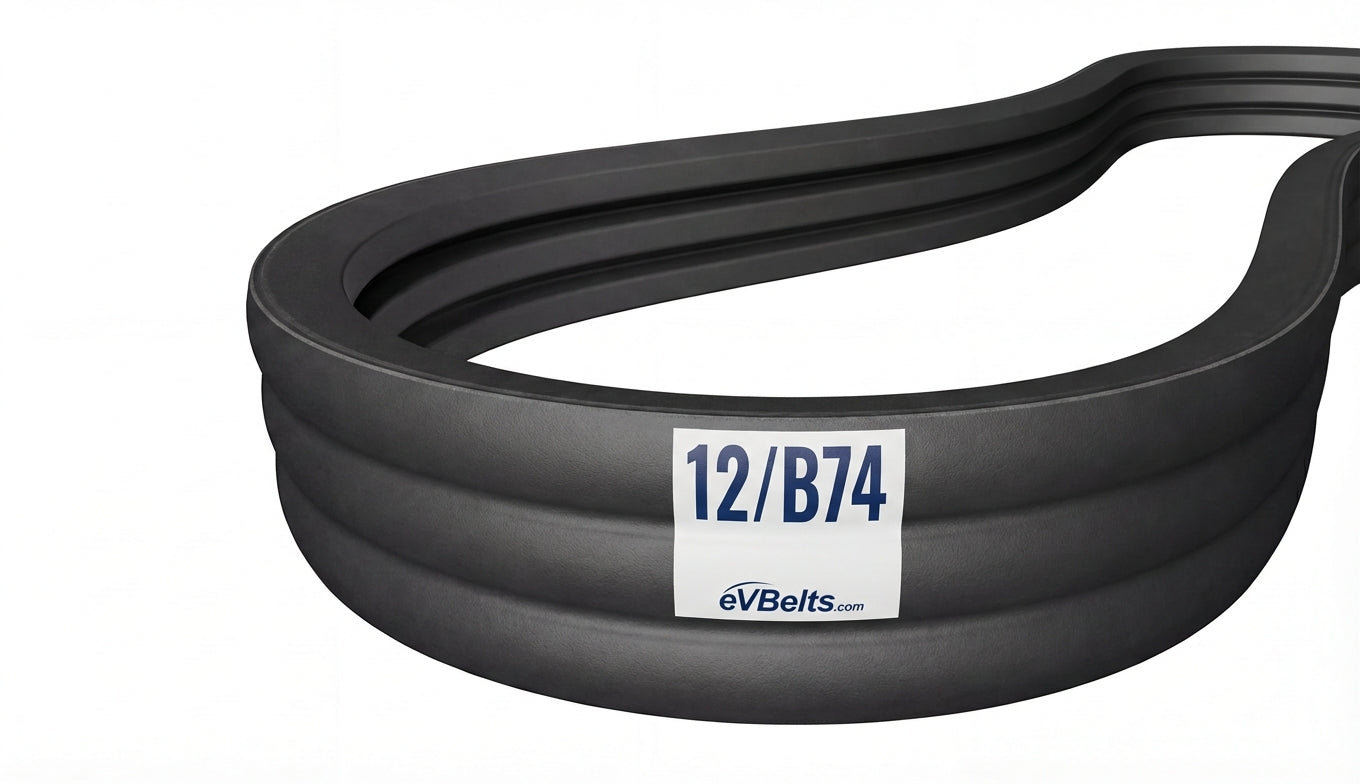

12/B74

Top Width: 8.202" (208.33mm)
Outside Length: 75.8" (1925.3mm)
Inside Length: 74" (1879.6mm)
Min Pulley Diameter: 5.4"
Configuration: 12-Band Set

The 12/B74 is a factory-joined 12-band B banded belt assembly measuring 8.202" wide x 75.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214368

$174.36

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	12/B74
Top Width	8.202 in / 208.33 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	74.0 in / 1879.6 mm
Outside Length	75.8 in / 1925.3 mm
Effective Length	75.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	12
