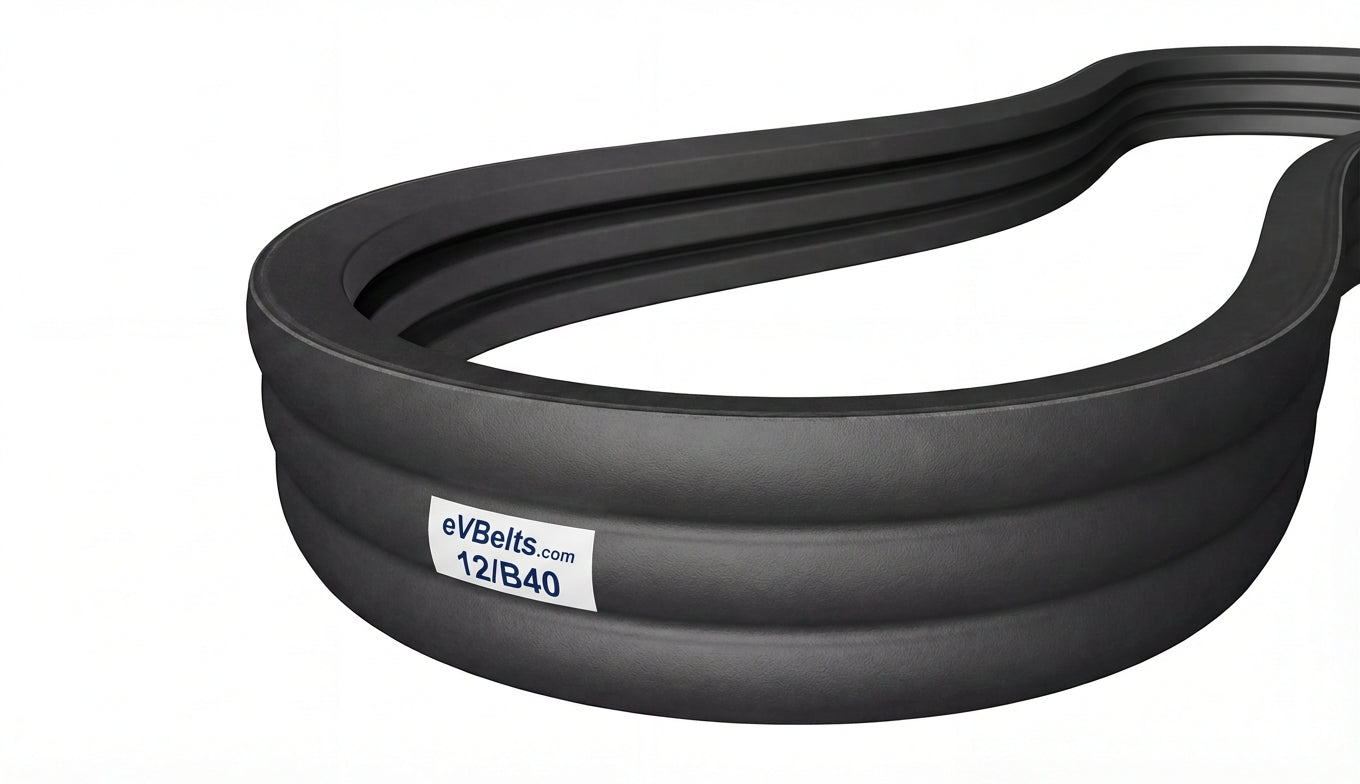

12/B40

Top Width: 8.202" (208.33mm)
Outside Length: 41.8" (1061.7mm)
Inside Length: 40" (1016mm)
Min Pulley Diameter: 5.4"
Configuration: 12-Band Set

The 12/B40 is a factory-joined 12-band B banded belt assembly measuring 8.202" wide x 41.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214336

$112.61

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	12/B40
Top Width	8.202 in / 208.33 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	40.0 in / 1016.0 mm
Outside Length	41.8 in / 1061.7 mm
Effective Length	41.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	12
