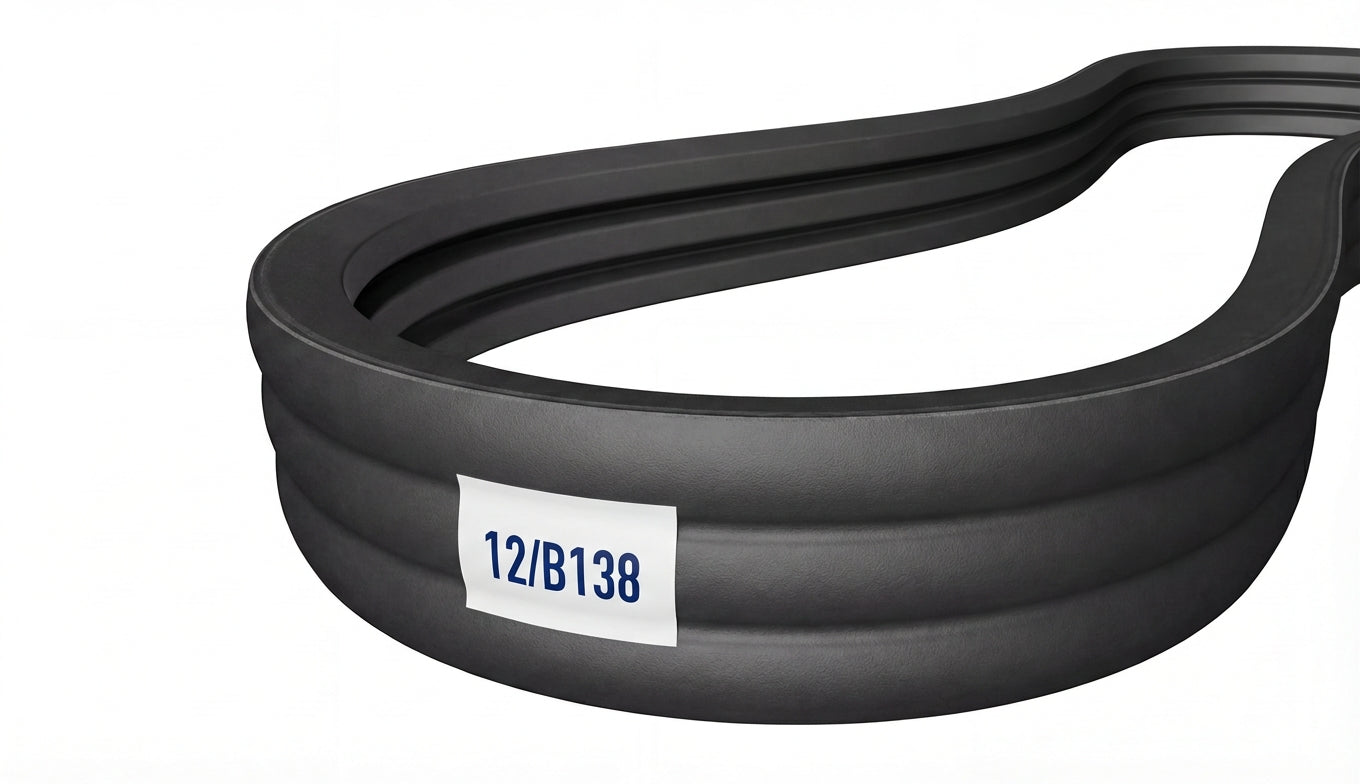

12/B138

Top Width: 8.202" (208.33mm)
Outside Length: 139.8" (3550.9mm)
Inside Length: 138" (3505.2mm)
Min Pulley Diameter: 5.4"
Configuration: 12-Band Set

The 12/B138 is a factory-joined 12-band B banded belt assembly measuring 8.202" wide x 139.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214407

$323.69

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	12/B138
Top Width	8.202 in / 208.33 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	138.0 in / 3505.2 mm
Outside Length	139.8 in / 3550.9 mm
Effective Length	139.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	12
