12/B104

Top Width: 8.202" (208.33mm)
Outside Length: 105.8" (2687.3mm)
Inside Length: 104" (2641.6mm)
Min Pulley Diameter: 5.4"
Configuration: 12-Band Set

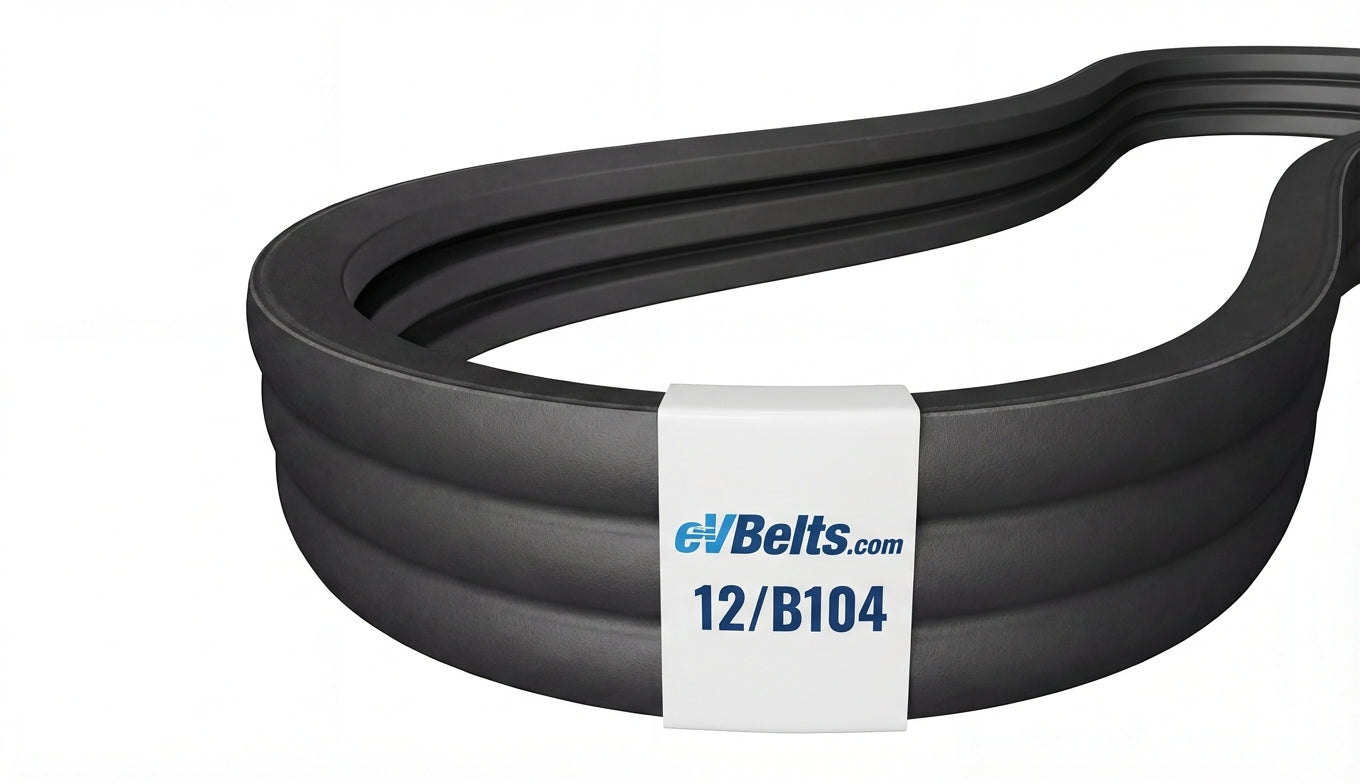

The 12/B104 is a factory-joined 12-band B banded belt assembly measuring 8.202" wide x 105.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214389

$242.35

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	12/B104
Top Width	8.202 in / 208.33 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	104.0 in / 2641.6 mm
Outside Length	105.8 in / 2687.3 mm
Effective Length	105.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	12
