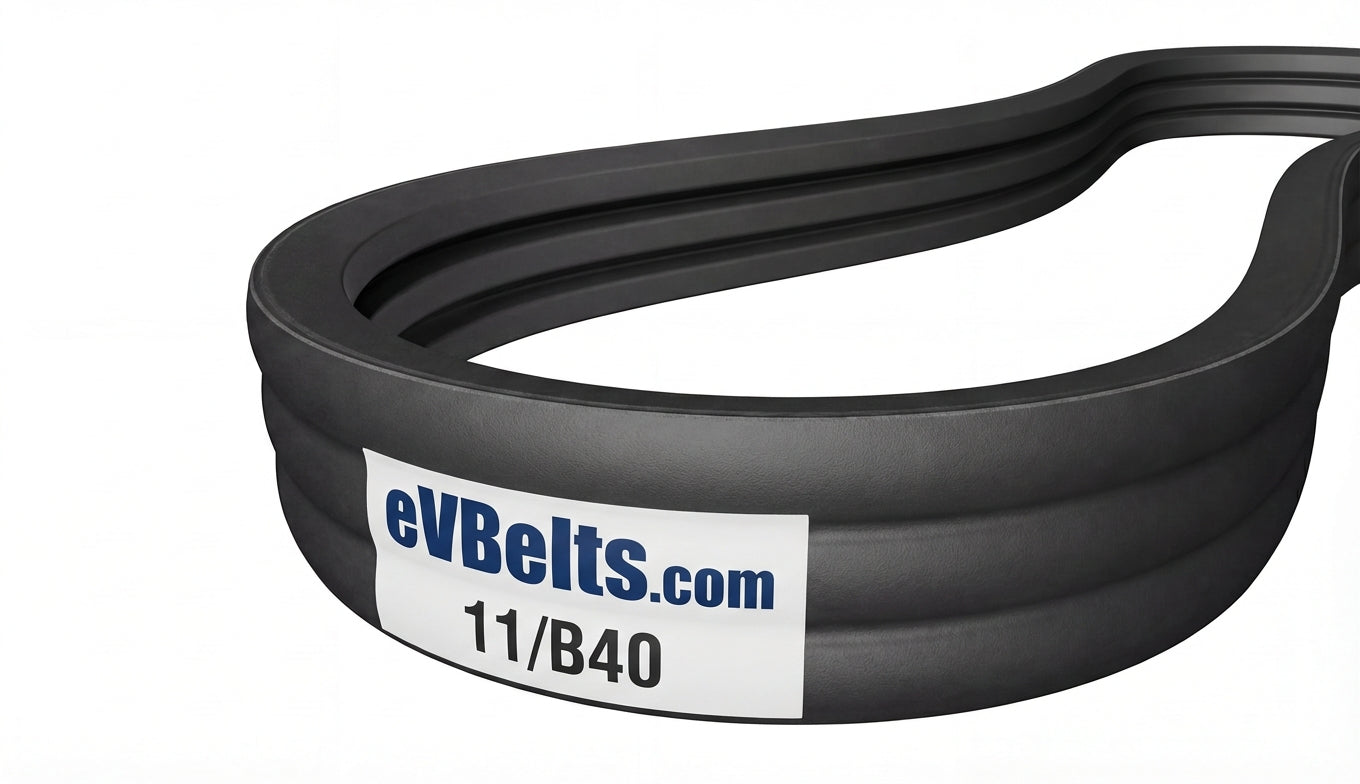

11/B40

Top Width: 7.516" (190.91mm)
Outside Length: 41.8" (1061.7mm)
Inside Length: 40" (1016mm)
Min Pulley Diameter: 5.4"
Configuration: 11-Band Set

The 11/B40 is a factory-joined 11-band B banded belt assembly measuring 7.516" wide x 41.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214238

$103.23

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	11/B40
Top Width	7.516 in / 190.91 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	40.0 in / 1016.0 mm
Outside Length	41.8 in / 1061.7 mm
Effective Length	41.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	11
