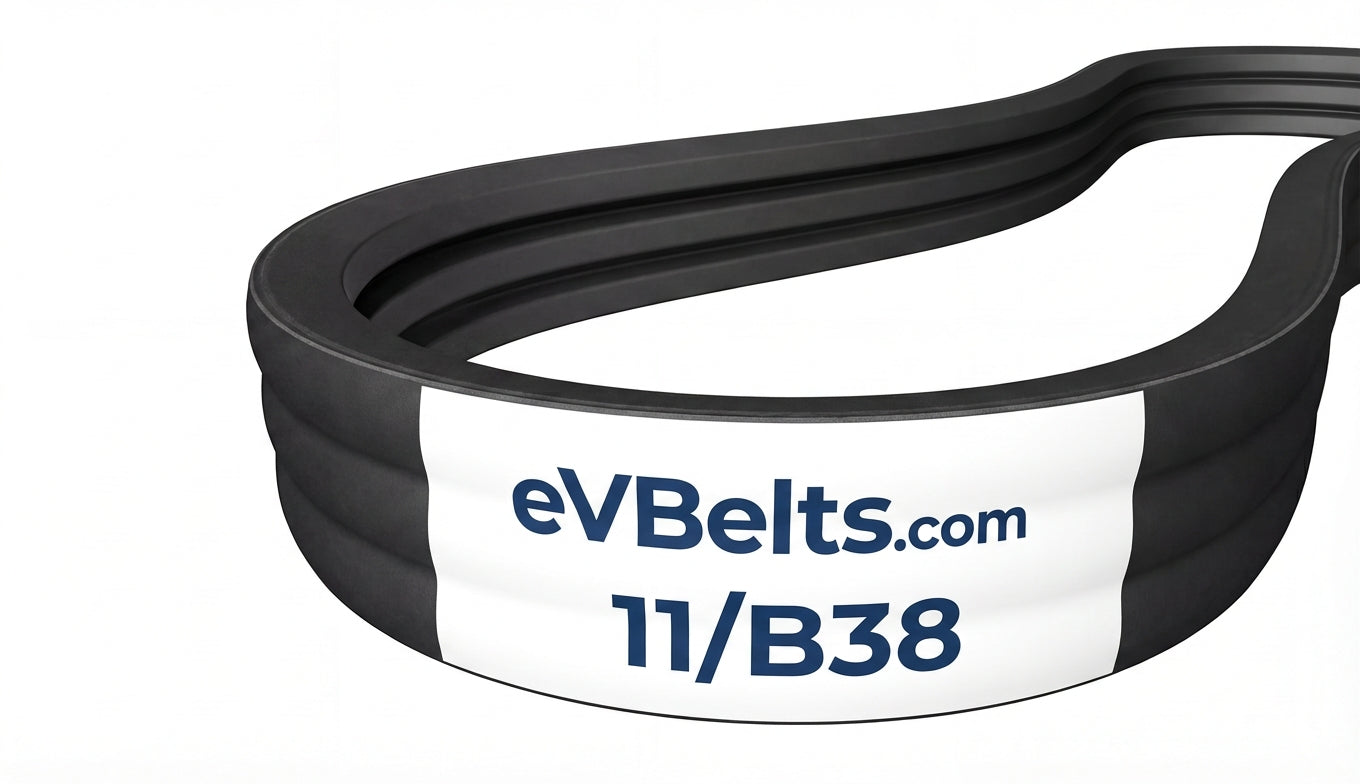

11/B38

Top Width: 7.516" (190.91mm)
Outside Length: 39.8" (1010.9mm)
Inside Length: 38" (965.2mm)
Min Pulley Diameter: 5.4"
Configuration: 11-Band Set

The 11/B38 is a factory-joined 11-band B banded belt assembly measuring 7.516" wide x 39.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214237

$98.73

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	11/B38
Top Width	7.516 in / 190.91 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	38.0 in / 965.2 mm
Outside Length	39.8 in / 1010.9 mm
Effective Length	39.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	11
