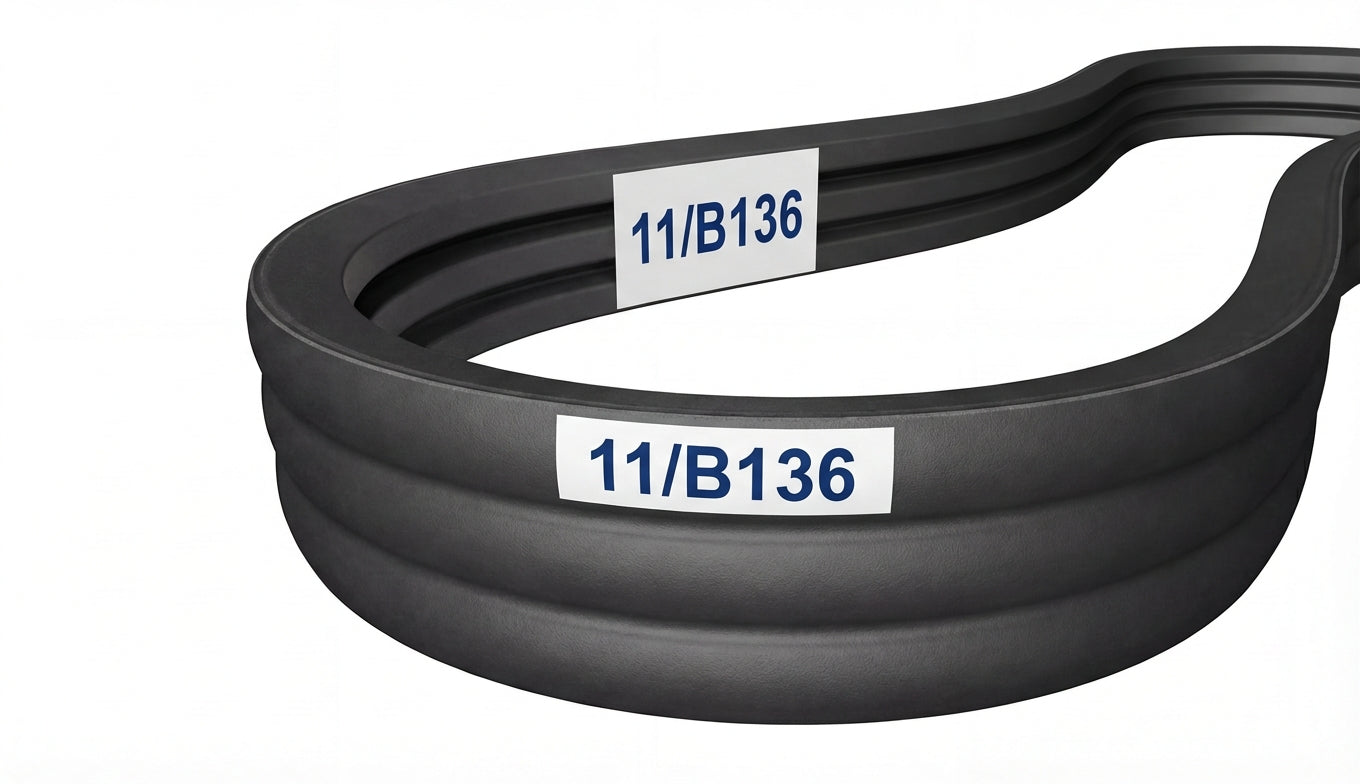

11/B136

Top Width: 7.516" (190.91mm)
Outside Length: 137.8" (3500.1mm)
Inside Length: 136" (3454.4mm)
Min Pulley Diameter: 5.4"
Configuration: 11-Band Set

The 11/B136 is a factory-joined 11-band B banded belt assembly measuring 7.516" wide x 137.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214307

$292.58

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	11/B136
Top Width	7.516 in / 190.91 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	136.0 in / 3454.4 mm
Outside Length	137.8 in / 3500.1 mm
Effective Length	137.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	11
