11/B110

Top Width: 7.516" (190.91mm)
Outside Length: 111.8" (2839.7mm)
Inside Length: 110" (2794mm)
Min Pulley Diameter: 5.4"
Configuration: 11-Band Set

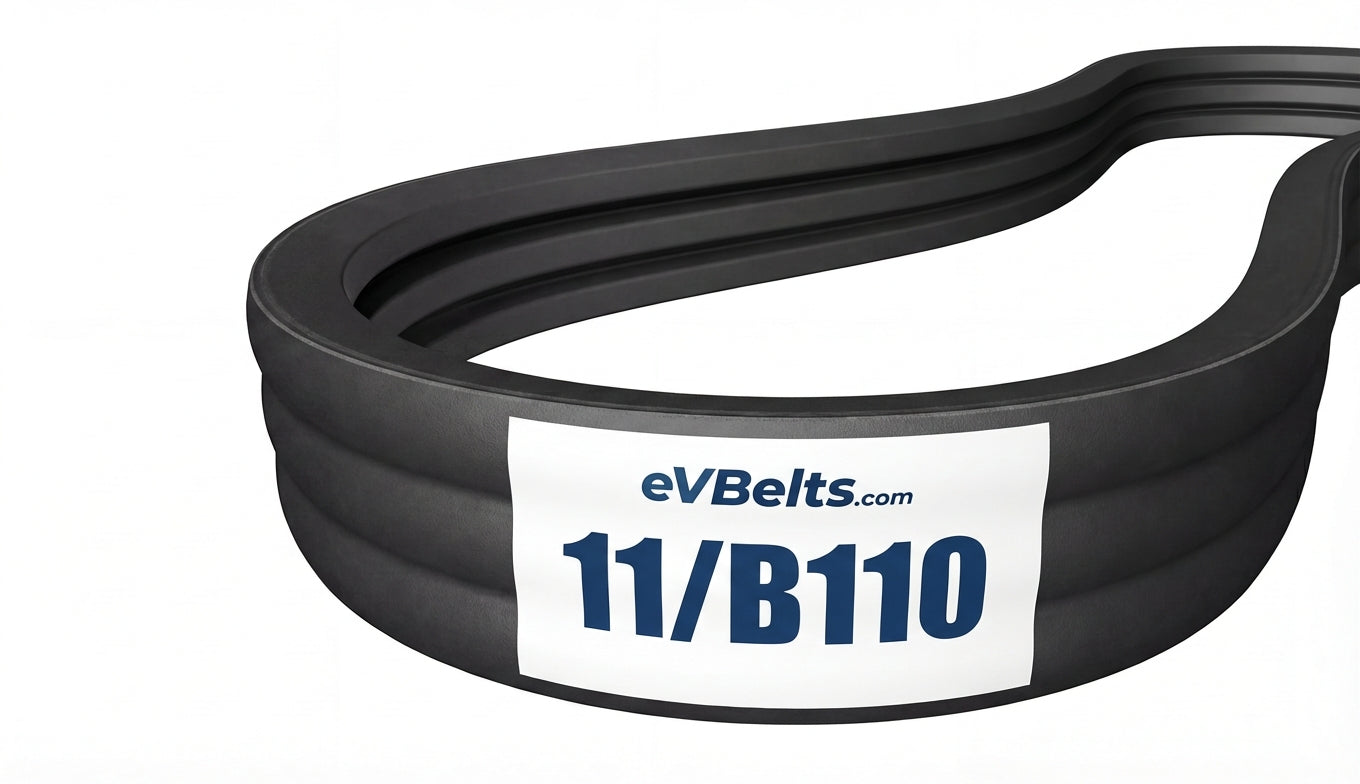

The 11/B110 is a factory-joined 11-band B banded belt assembly measuring 7.516" wide x 111.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214296

$237.49

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	11/B110
Top Width	7.516 in / 190.91 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	110.0 in / 2794.0 mm
Outside Length	111.8 in / 2839.7 mm
Effective Length	111.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	11
