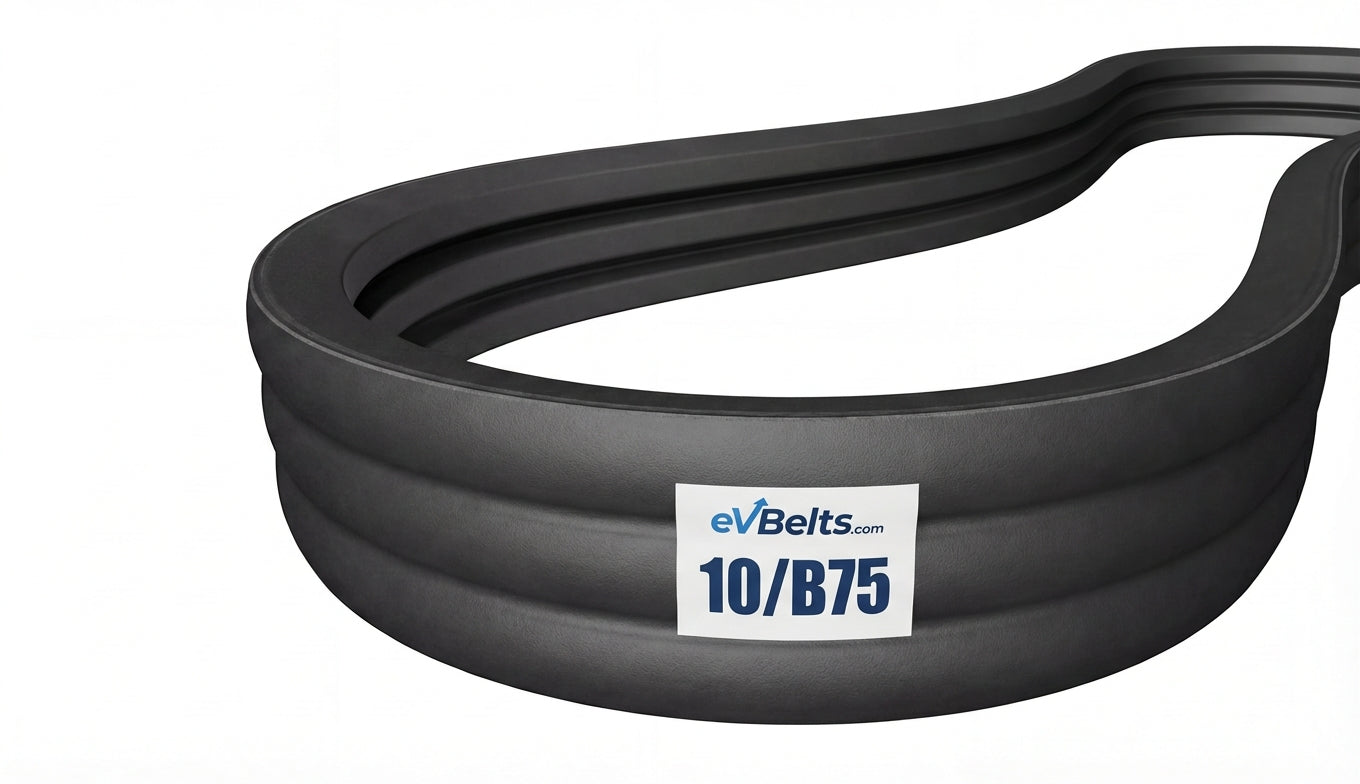

10/B75

Top Width: 6.83" (173.48mm)
Outside Length: 76.8" (1950.7mm)
Inside Length: 75" (1905mm)
Min Pulley Diameter: 5.4"
Configuration: 10-Band Set

The 10/B75 is a factory-joined 10-band B banded belt assembly measuring 6.83" wide x 76.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214172

$146.81

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	10/B75
Top Width	6.83 in / 173.48 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	75.0 in / 1905.0 mm
Outside Length	76.8 in / 1950.7 mm
Effective Length	76.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	10
