10/B70

Top Width: 6.83" (173.48mm)
Outside Length: 71.8" (1823.7mm)
Inside Length: 70" (1778mm)
Min Pulley Diameter: 5.4"
Configuration: 10-Band Set

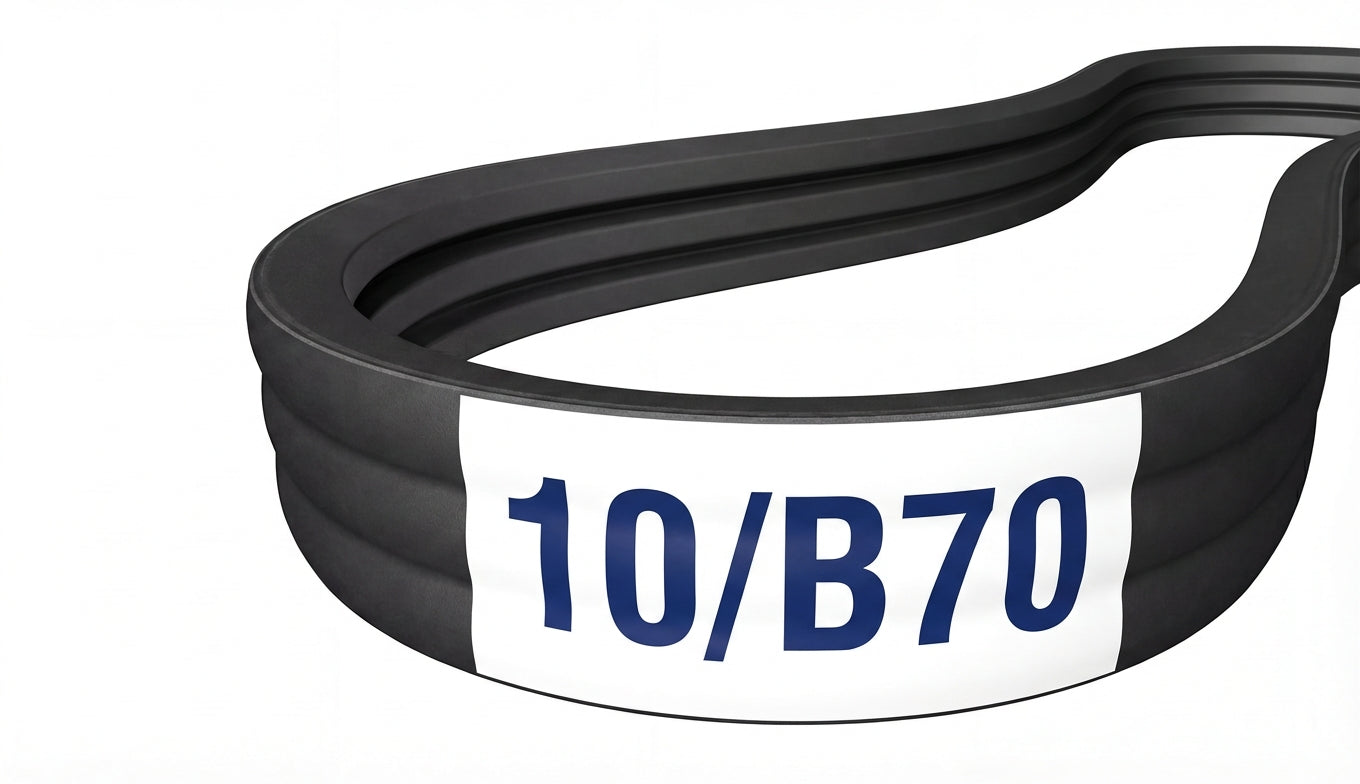

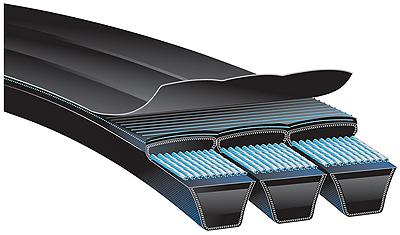

The 10/B70 is a factory-joined 10-band B banded belt assembly measuring 6.83" wide x 71.8" long, featuring oil and heat resistant rubber construction.

SKU: 1214168

$138.32

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	10/B70
Top Width	6.83 in / 173.48 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	70.0 in / 1778.0 mm
Outside Length	71.8 in / 1823.7 mm
Effective Length	71.4 in
Min Sheave Diameter	5.4 in / 137.2 mm
Ribs	10
