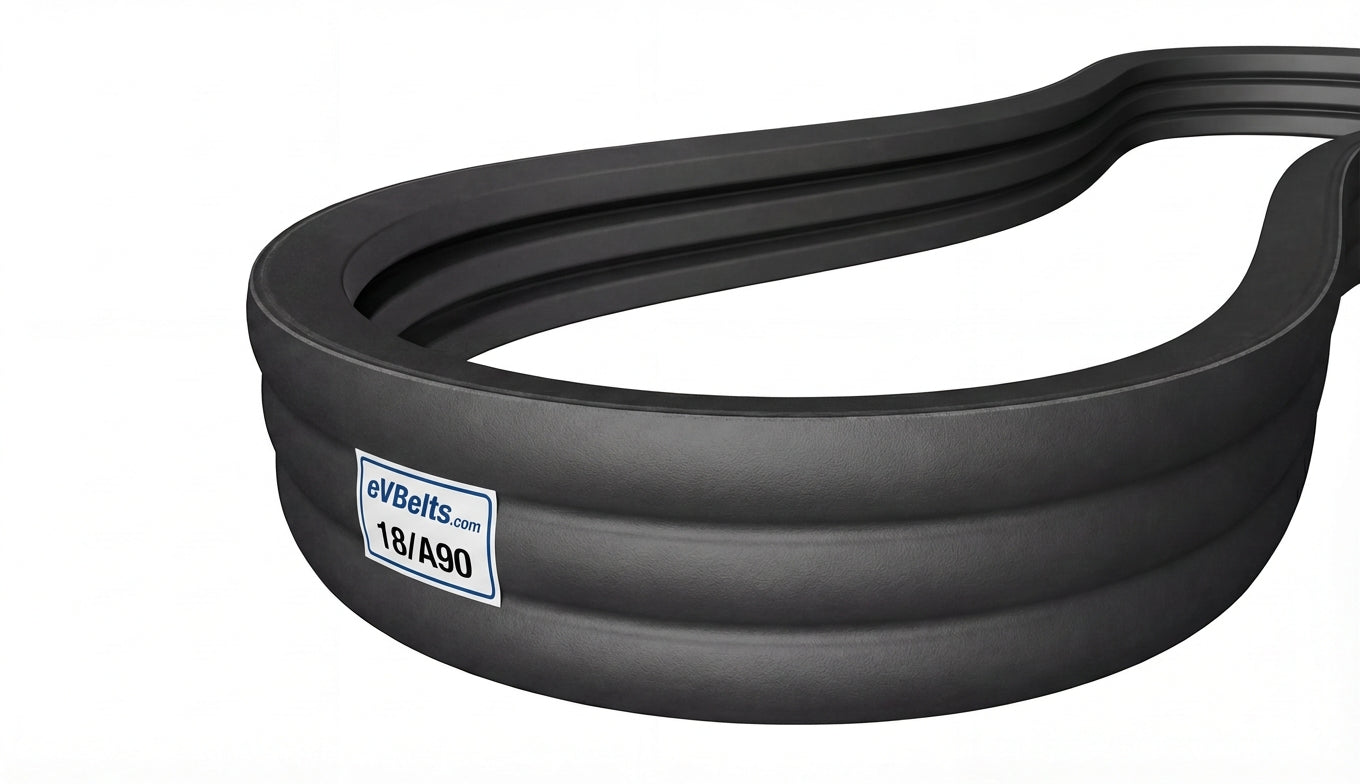

18/A90

Top Width: 9.51" (241.55mm)
Outside Length: 91.3" (2319mm)
Inside Length: 90" (2286mm)
Min Pulley Diameter: 3"
Configuration: 18-Band Set

The 18/A90 is a factory-joined 18-band A banded belt assembly measuring 9.51" wide x 91.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213684

$227.85

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	18/A90
Top Width	9.51 in / 241.55 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	90.0 in / 2286.0 mm
Outside Length	91.3 in / 2319.0 mm
Effective Length	91.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	18
