18/A78

Top Width: 9.51" (241.55mm)
Outside Length: 79.3" (2014.2mm)
Inside Length: 78" (1981.2mm)
Min Pulley Diameter: 3"
Configuration: 18-Band Set

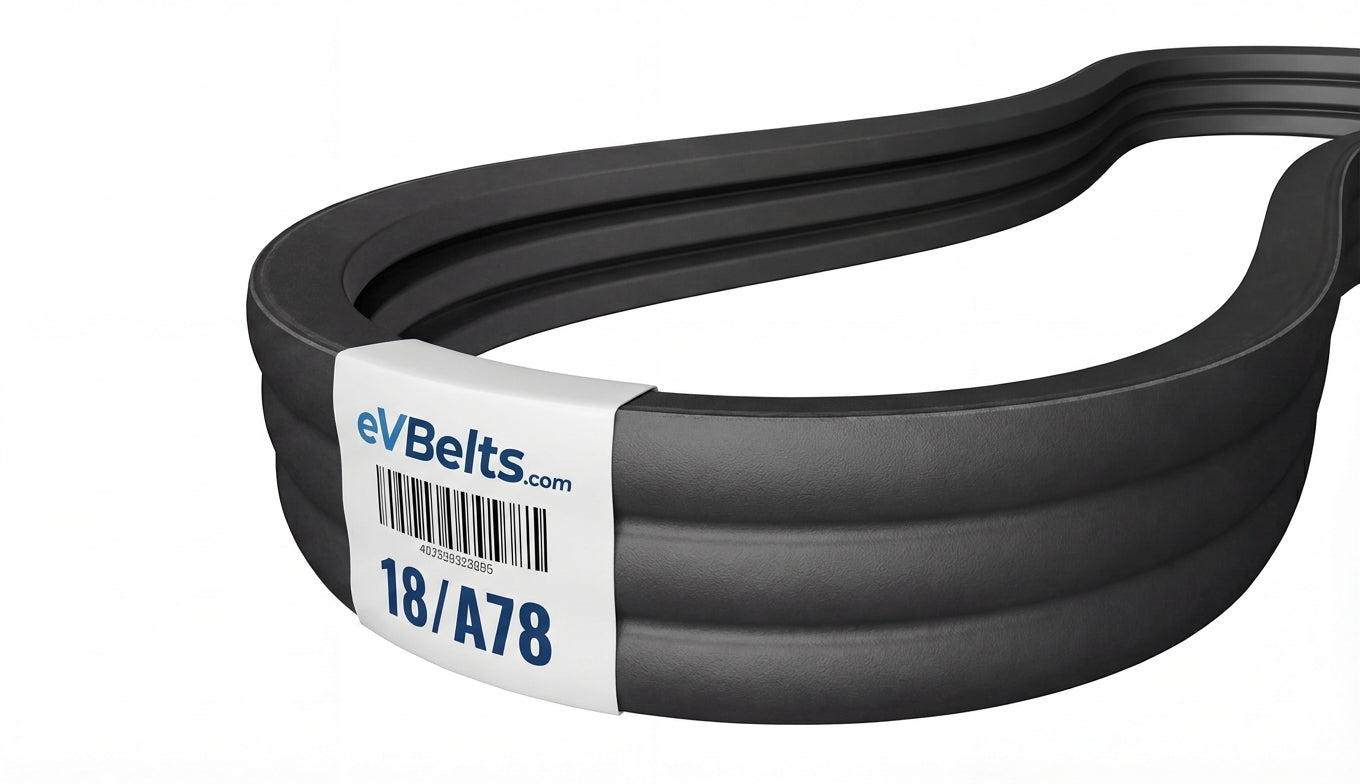

The 18/A78 is a factory-joined 18-band A banded belt assembly measuring 9.51" wide x 79.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213679

$191.76

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	18/A78
Top Width	9.51 in / 241.55 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	78.0 in / 1981.2 mm
Outside Length	79.3 in / 2014.2 mm
Effective Length	79.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	18
