18/A47

Top Width: 9.51" (241.55mm)
Outside Length: 48.3" (1226.8mm)
Inside Length: 47" (1193.8mm)
Min Pulley Diameter: 3"
Configuration: 18-Band Set

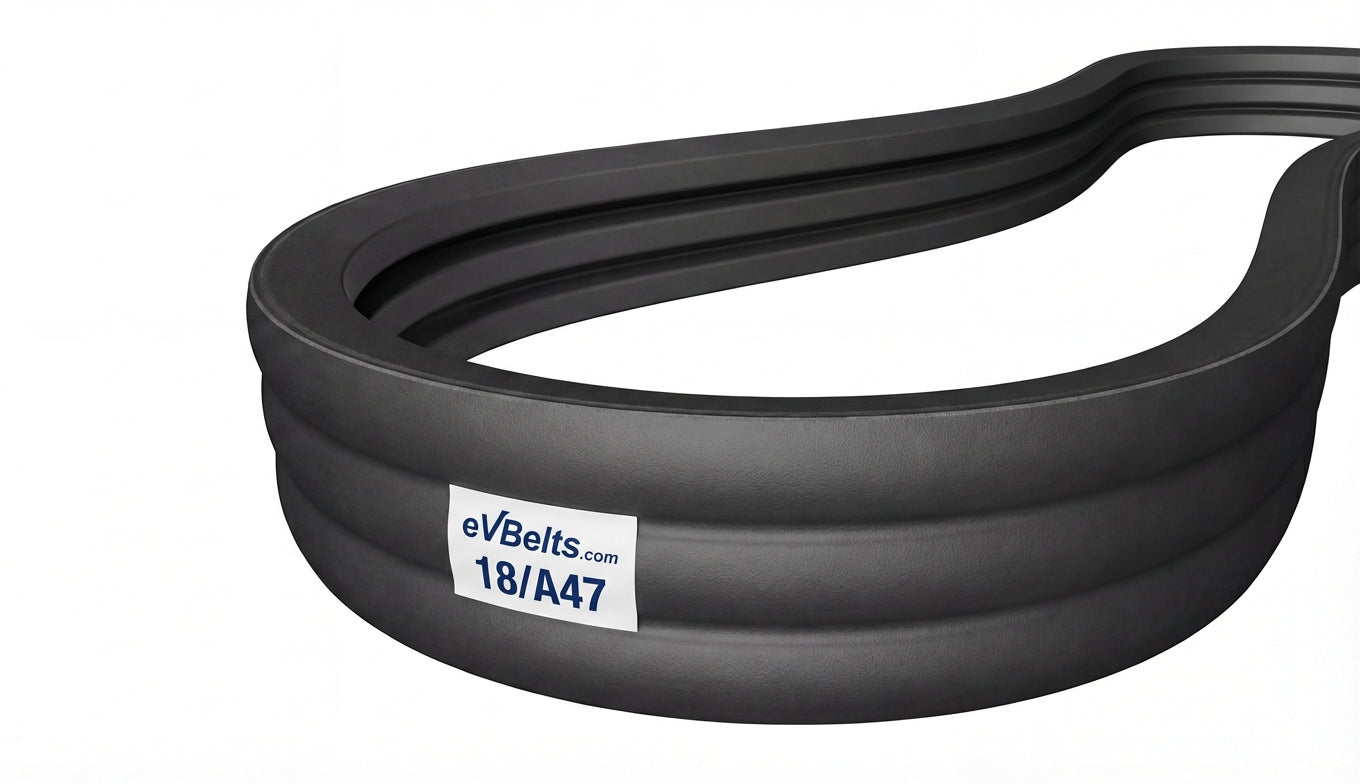

The 18/A47 is a factory-joined 18-band A banded belt assembly measuring 9.51" wide x 48.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213658

$127.28

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	18/A47
Top Width	9.51 in / 241.55 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	47.0 in / 1193.8 mm
Outside Length	48.3 in / 1226.8 mm
Effective Length	48.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	18
