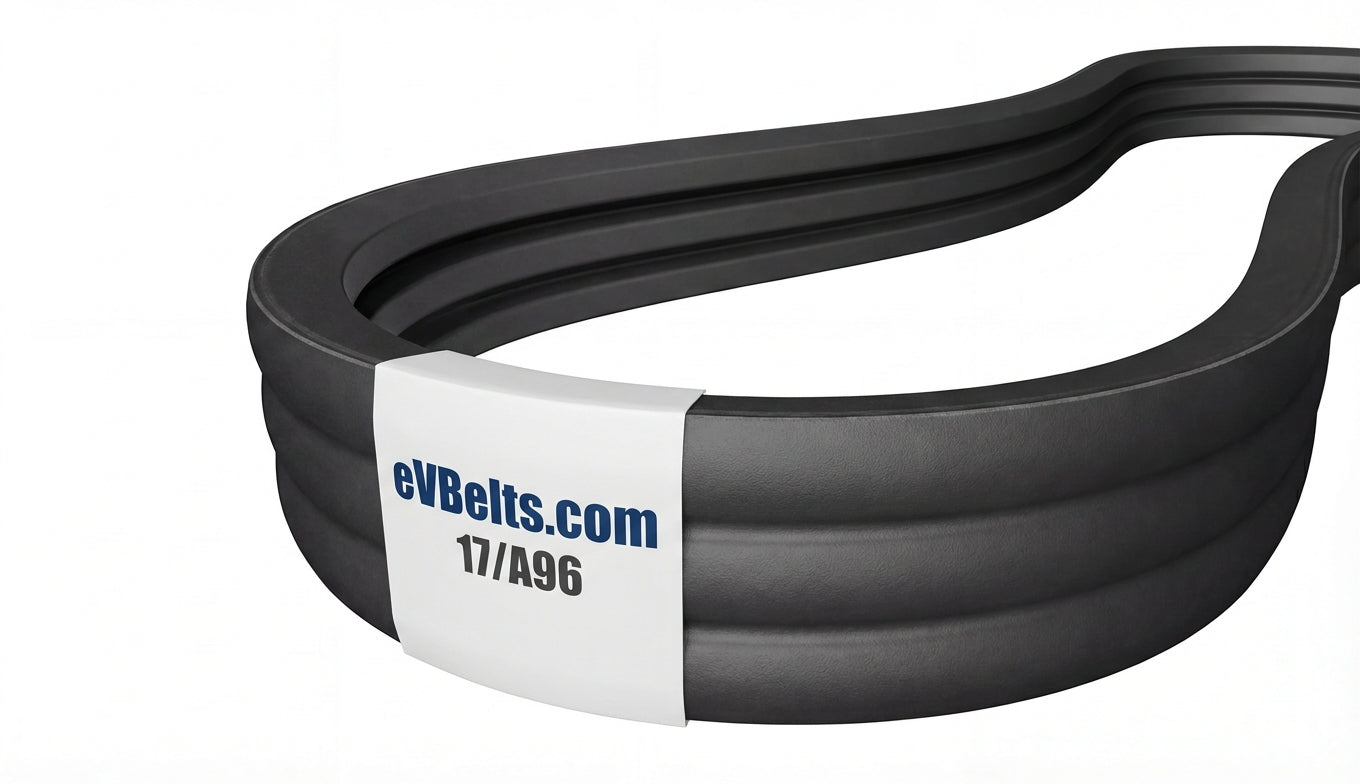

17/A96

Top Width: 8.98" (228.09mm)
Outside Length: 97.3" (2471.4mm)
Inside Length: 96" (2438.4mm)
Min Pulley Diameter: 3"
Configuration: 17-Band Set

The 17/A96 is a factory-joined 17-band A banded belt assembly measuring 8.98" wide x 97.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213642

$228.94

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	17/A96
Top Width	8.98 in / 228.09 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	96.0 in / 2438.4 mm
Outside Length	97.3 in / 2471.4 mm
Effective Length	97.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	17
