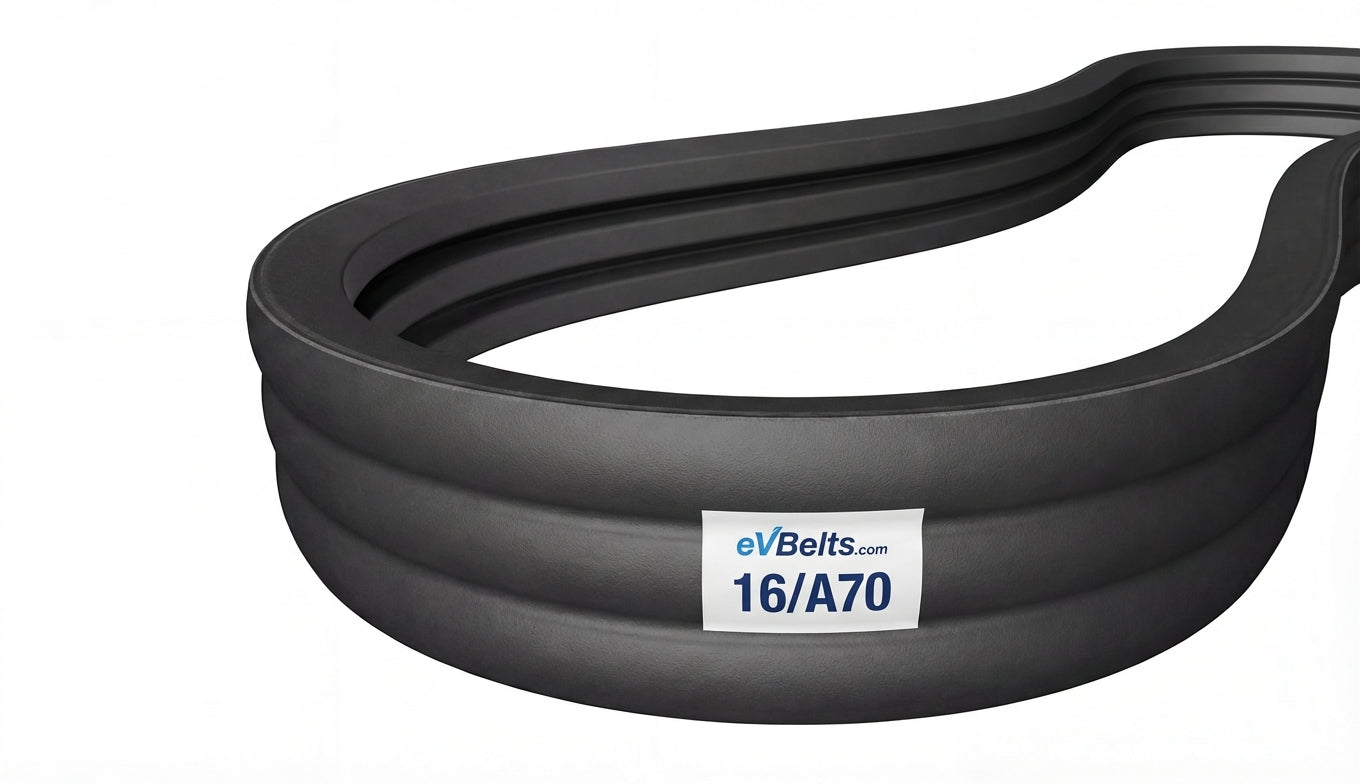

16/A70

Top Width: 8.45" (214.63mm)
Outside Length: 71.3" (1811mm)
Inside Length: 70" (1778mm)
Min Pulley Diameter: 3"
Configuration: 16-Band Set

The 16/A70 is a factory-joined 16-band A banded belt assembly measuring 8.45" wide x 71.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213586

$156.77

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	16/A70
Top Width	8.45 in / 214.63 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	70.0 in / 1778.0 mm
Outside Length	71.3 in / 1811.0 mm
Effective Length	71.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	16
