16/A57

Top Width: 8.45" (214.63mm)
Outside Length: 58.3" (1480.8mm)
Inside Length: 57" (1447.8mm)
Min Pulley Diameter: 3"
Configuration: 16-Band Set

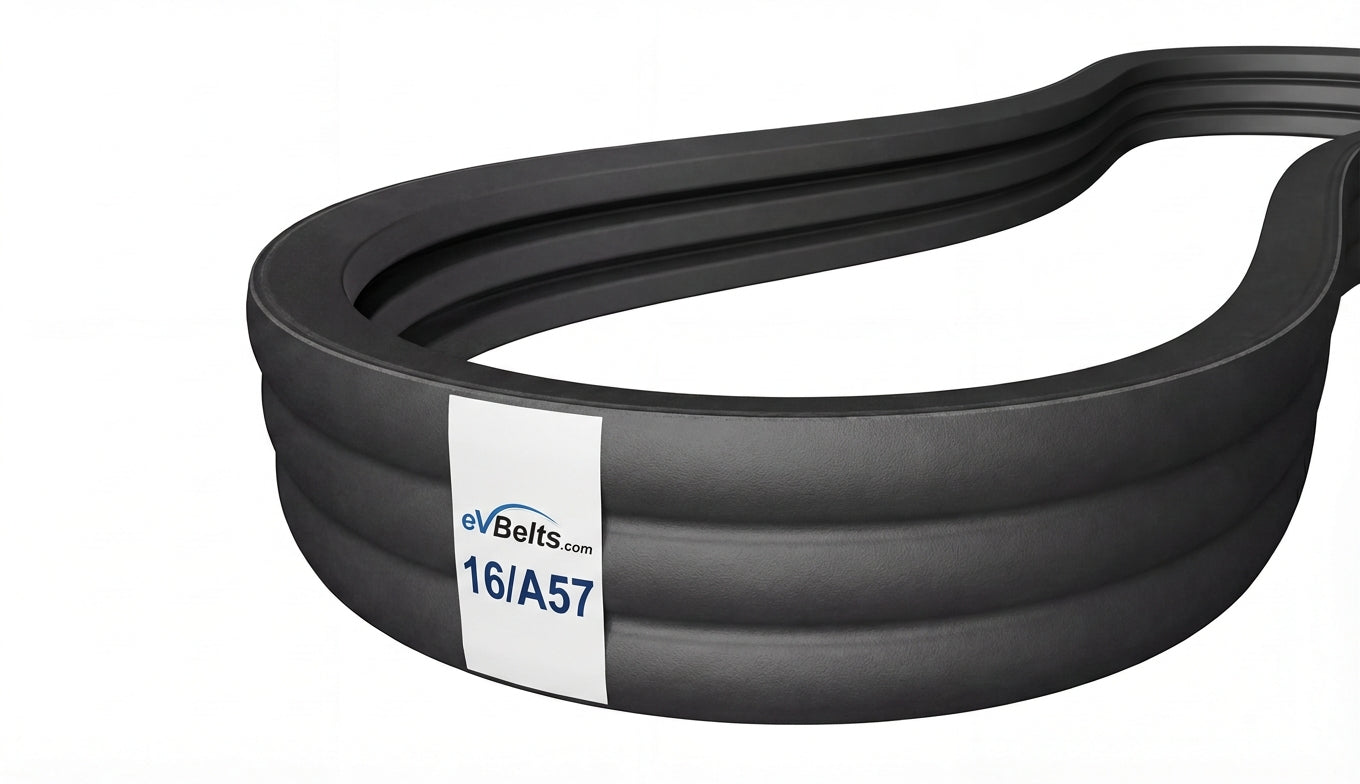

The 16/A57 is a factory-joined 16-band A banded belt assembly measuring 8.45" wide x 58.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213578

$132.50

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	16/A57
Top Width	8.45 in / 214.63 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	57.0 in / 1447.8 mm
Outside Length	58.3 in / 1480.8 mm
Effective Length	58.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	16
