15/A77

Top Width: 7.92" (201.17mm)
Outside Length: 78.3" (1988.8mm)
Inside Length: 77" (1955.8mm)
Min Pulley Diameter: 3"
Configuration: 15-Band Set

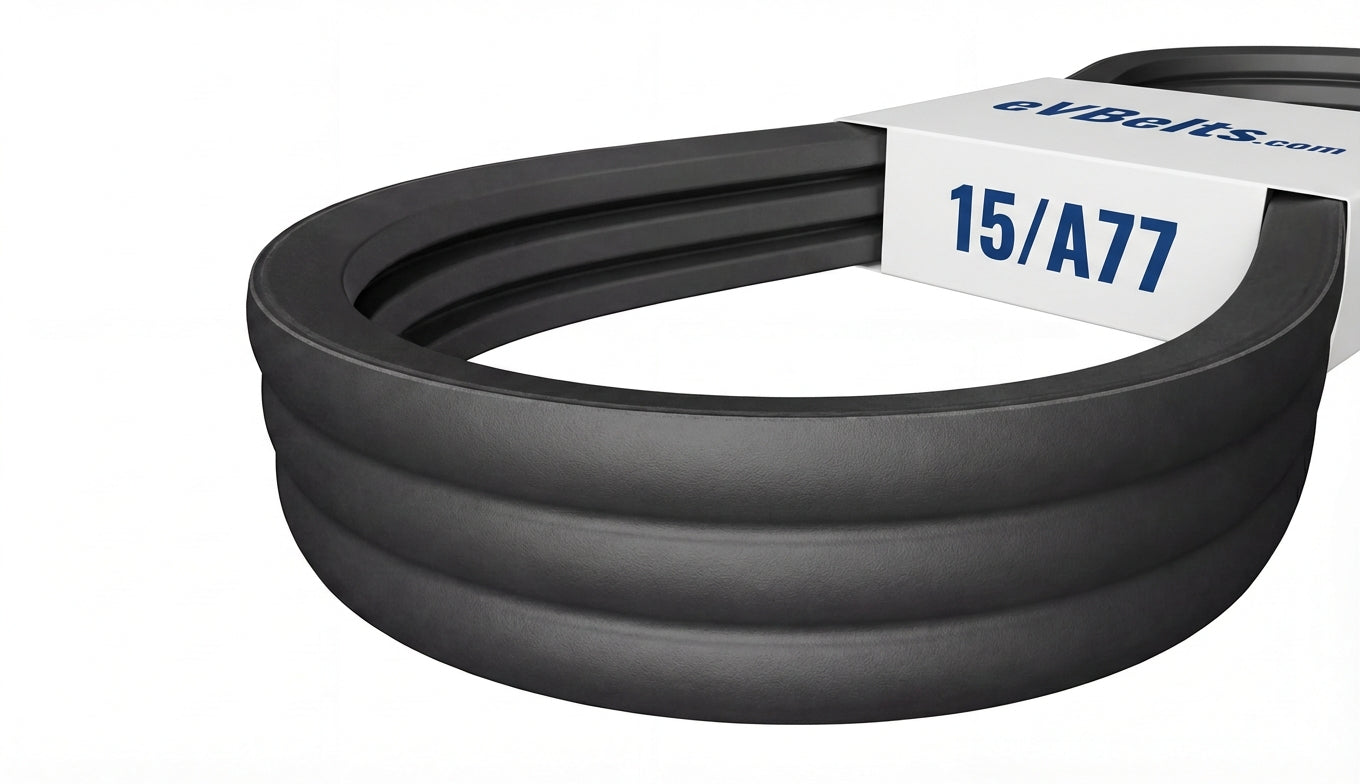

The 15/A77 is a factory-joined 15-band A banded belt assembly measuring 7.92" wide x 78.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213545

$157.11

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	15/A77
Top Width	7.92 in / 201.17 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	77.0 in / 1955.8 mm
Outside Length	78.3 in / 1988.8 mm
Effective Length	78.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	15
