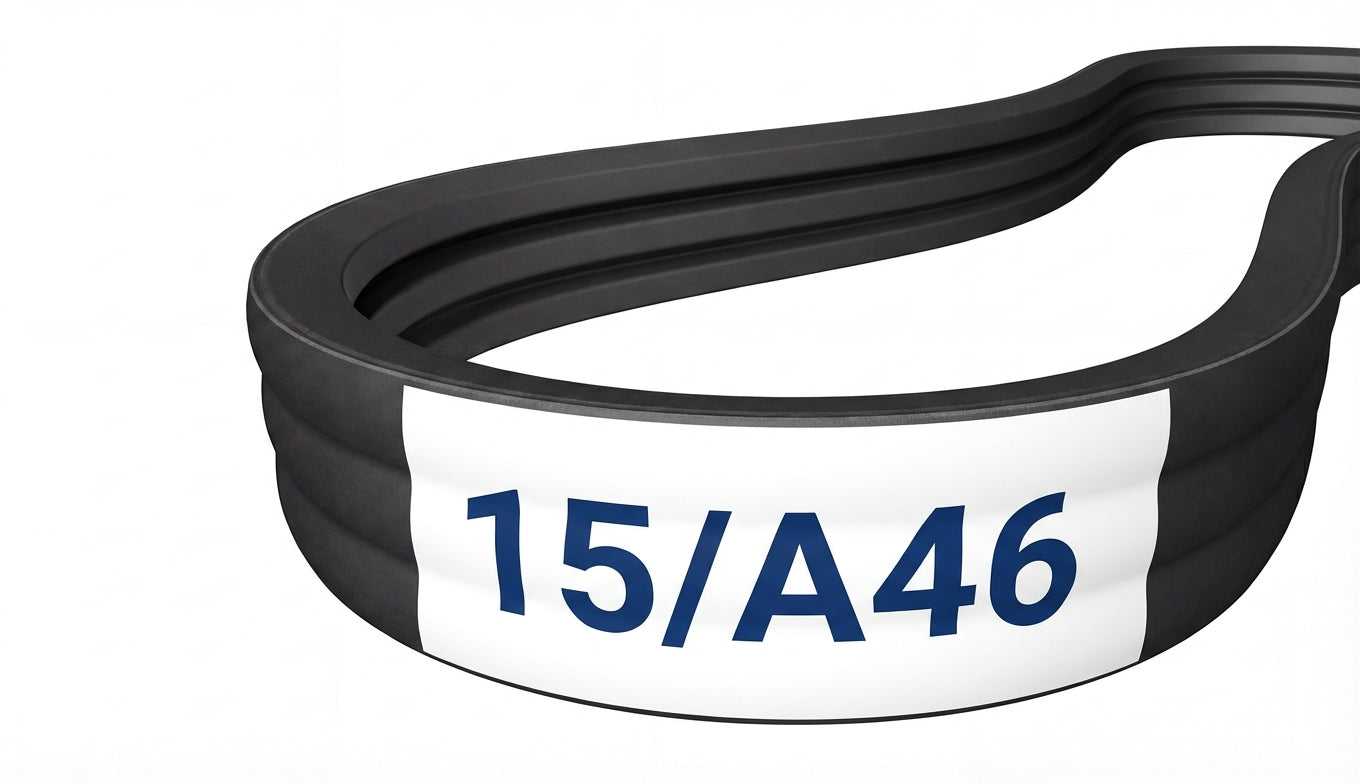

15/A46

Top Width: 7.92" (201.17mm)
Outside Length: 47.3" (1201.4mm)
Inside Length: 46" (1168.4mm)
Min Pulley Diameter: 3"
Configuration: 15-Band Set

The 15/A46 is a factory-joined 15-band A banded belt assembly measuring 7.92" wide x 47.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213525

$110.22

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	15/A46
Top Width	7.92 in / 201.17 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	46.0 in / 1168.4 mm
Outside Length	47.3 in / 1201.4 mm
Effective Length	47.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	15
