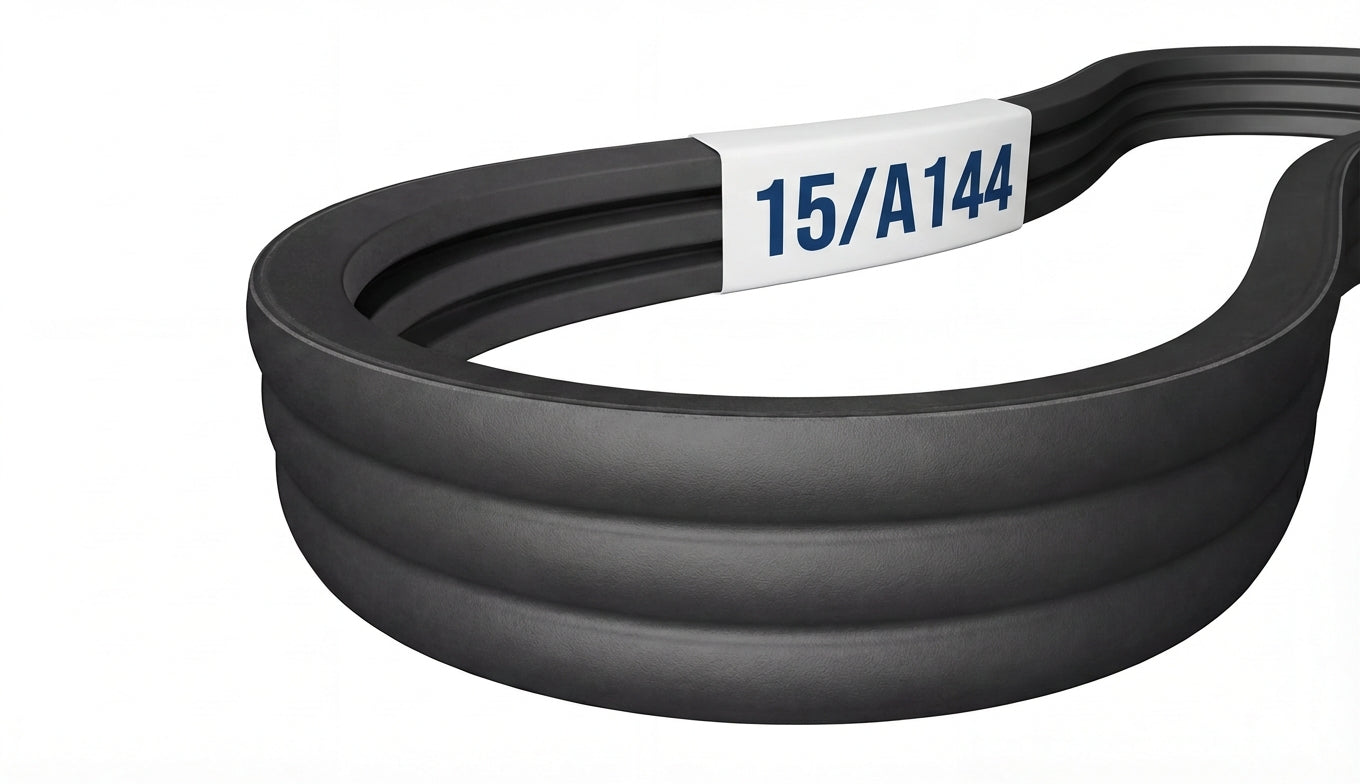

15/A144

Top Width: 7.92" (201.17mm)
Outside Length: 145.3" (3690.6mm)
Inside Length: 144" (3657.6mm)
Min Pulley Diameter: 3"
Configuration: 15-Band Set

The 15/A144 is a factory-joined 15-band A banded belt assembly measuring 7.92" wide x 145.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213561

$317.61

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	15/A144
Top Width	7.92 in / 201.17 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	144.0 in / 3657.6 mm
Outside Length	145.3 in / 3690.6 mm
Effective Length	145.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	15
