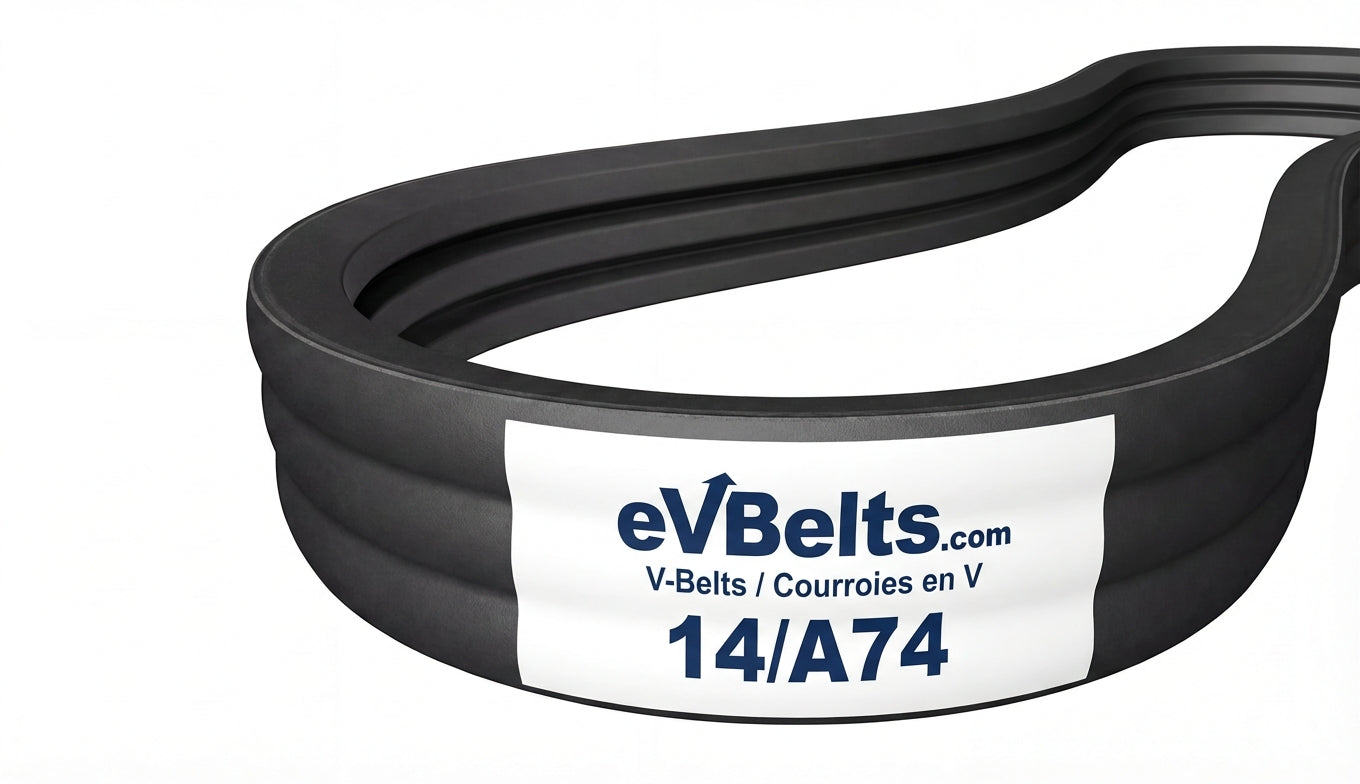

14/A74

Top Width: 7.39" (187.71mm)
Outside Length: 75.3" (1912.6mm)
Inside Length: 74" (1879.6mm)
Min Pulley Diameter: 3"
Configuration: 14-Band Set

The 14/A74 is a factory-joined 14-band A banded belt assembly measuring 7.39" wide x 75.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213501

$141.11

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	14/A74
Top Width	7.39 in / 187.71 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	74.0 in / 1879.6 mm
Outside Length	75.3 in / 1912.6 mm
Effective Length	75.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	14
