13/A136

Top Width: 6.86" (174.24mm)
Outside Length: 137.3" (3487.4mm)
Inside Length: 136" (3454.4mm)
Min Pulley Diameter: 3"
Configuration: 13-Band Set

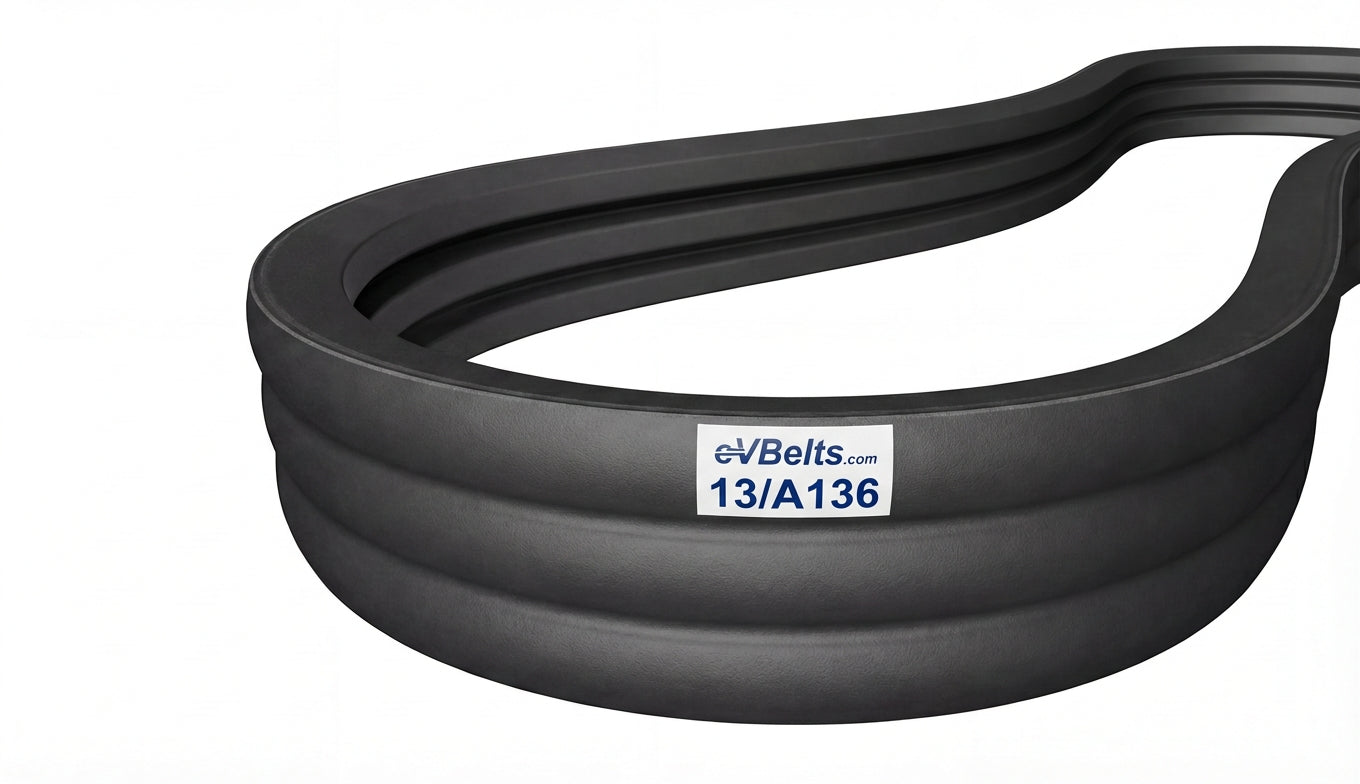

The 13/A136 is a factory-joined 13-band A banded belt assembly measuring 6.86" wide x 137.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213472

$259.86

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	13/A136
Top Width	6.86 in / 174.24 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	136.0 in / 3454.4 mm
Outside Length	137.3 in / 3487.4 mm
Effective Length	137.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	13
