12/A56

Top Width: 6.33" (160.78mm)
Outside Length: 57.3" (1455.4mm)
Inside Length: 56" (1422.4mm)
Min Pulley Diameter: 3"
Configuration: 12-Band Set

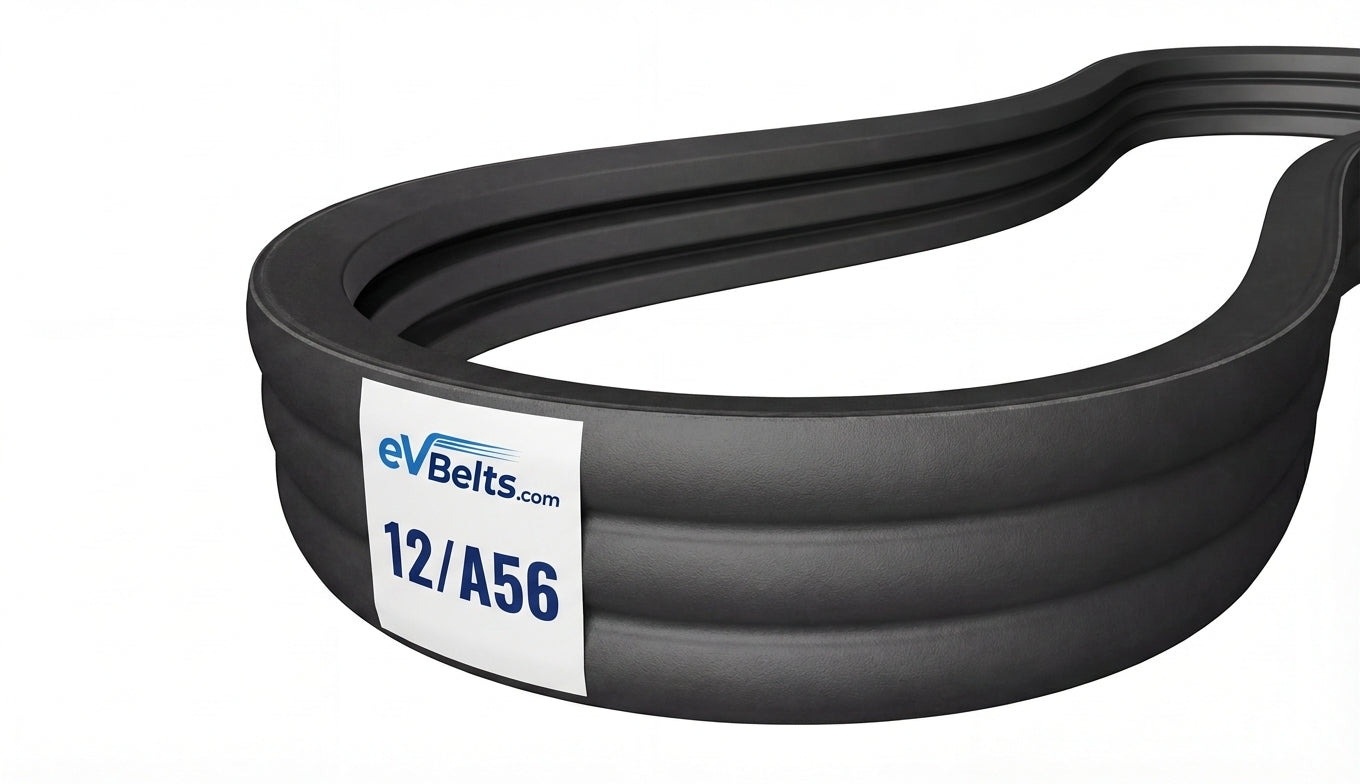

The 12/A56 is a factory-joined 12-band A banded belt assembly measuring 6.33" wide x 57.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213402

$98.31

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/A56
Top Width	6.33 in / 160.78 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	56.0 in / 1422.4 mm
Outside Length	57.3 in / 1455.4 mm
Effective Length	57.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	12
