12/A49

Top Width: 6.33" (160.78mm)
Outside Length: 50.3" (1277.6mm)
Inside Length: 49" (1244.6mm)
Min Pulley Diameter: 3"
Configuration: 12-Band Set

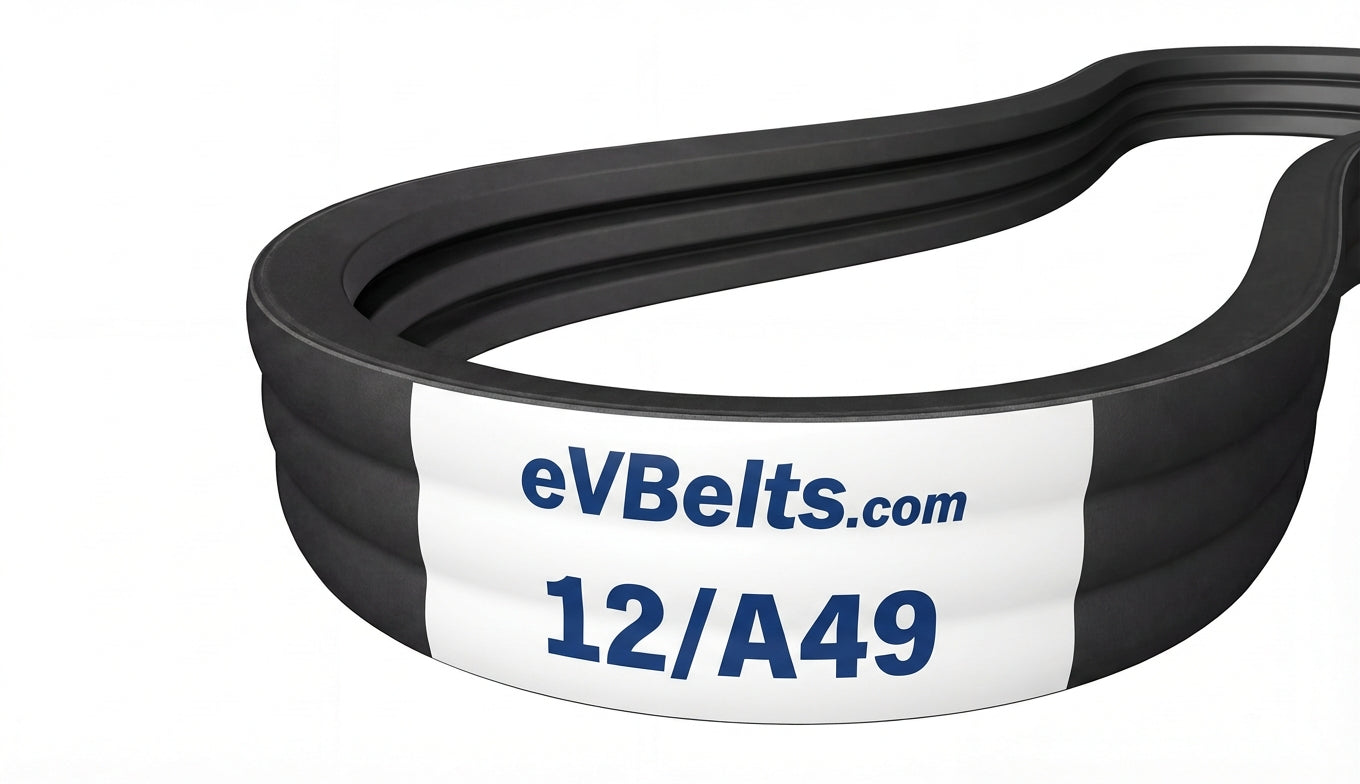

The 12/A49 is a factory-joined 12-band A banded belt assembly measuring 6.33" wide x 50.3" long, featuring oil and heat resistant rubber construction.

SKU: 1213396

$91.05

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/A49
Top Width	6.33 in / 160.78 mm
Belt Depth	0.3125 in / 7.94 mm
Inside Length	49.0 in / 1244.6 mm
Outside Length	50.3 in / 1277.6 mm
Effective Length	50.0 in
Min Sheave Diameter	3.0 in / 76.2 mm
Ribs	12
