8/8V1180

Top Width: 8.21" (208.53mm)
Outside Length: 119" (3022.6mm)
Inside Length: 116.5" (2959.1mm)
Min Pulley Diameter: 12.5"
Configuration: 8-Band Set

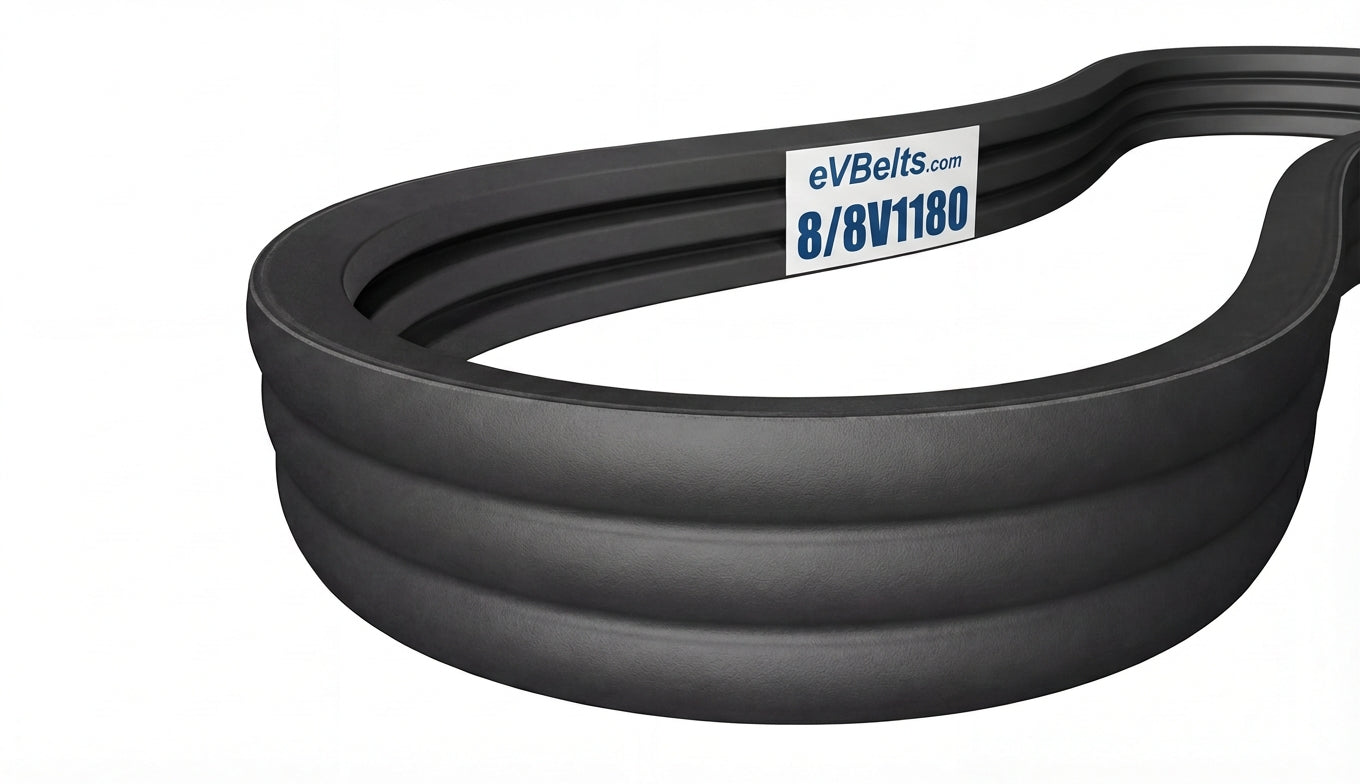

The 8/8V1180 is a factory-joined 8-band 8V banded belt assembly measuring 8.21" wide x 119" long, featuring oil and heat resistant rubber construction.

SKU: 1225089

$485.47

Only 1 Left!

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	8/8V1180
Top Width	8.21 in / 208.53 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	116.5 in / 2959.1 mm
Outside Length	119.0 in / 3022.6 mm
Effective Length	118.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	8
