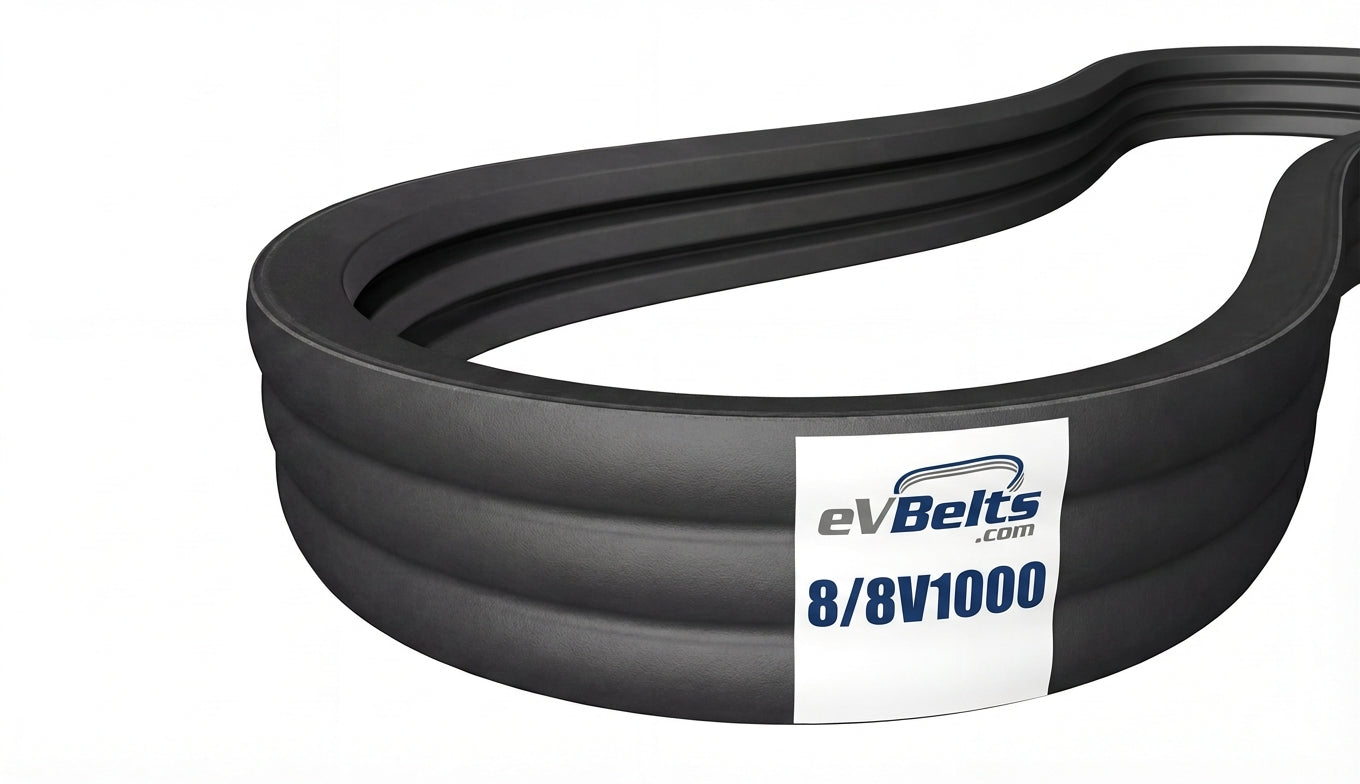

8/8V1000

Top Width: 8.21" (208.53mm)
Outside Length: 101" (2565.4mm)
Inside Length: 98.5" (2501.9mm)
Min Pulley Diameter: 12.5"
Configuration: 8-Band Set

The 8/8V1000 is a factory-joined 8-band 8V banded belt assembly measuring 8.21" wide x 101" long, featuring oil and heat resistant rubber construction.

SKU: 1225086

$553.48

0 In Stock

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	8/8V1000
Top Width	8.21 in / 208.53 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	98.5 in / 2501.9 mm
Outside Length	101.0 in / 2565.4 mm
Effective Length	100.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	8
