7/8V1120

Top Width: 7.18" (182.37mm)
Outside Length: 113" (2870.2mm)
Inside Length: 110.5" (2806.7mm)
Min Pulley Diameter: 12.5"
Configuration: 7-Band Set

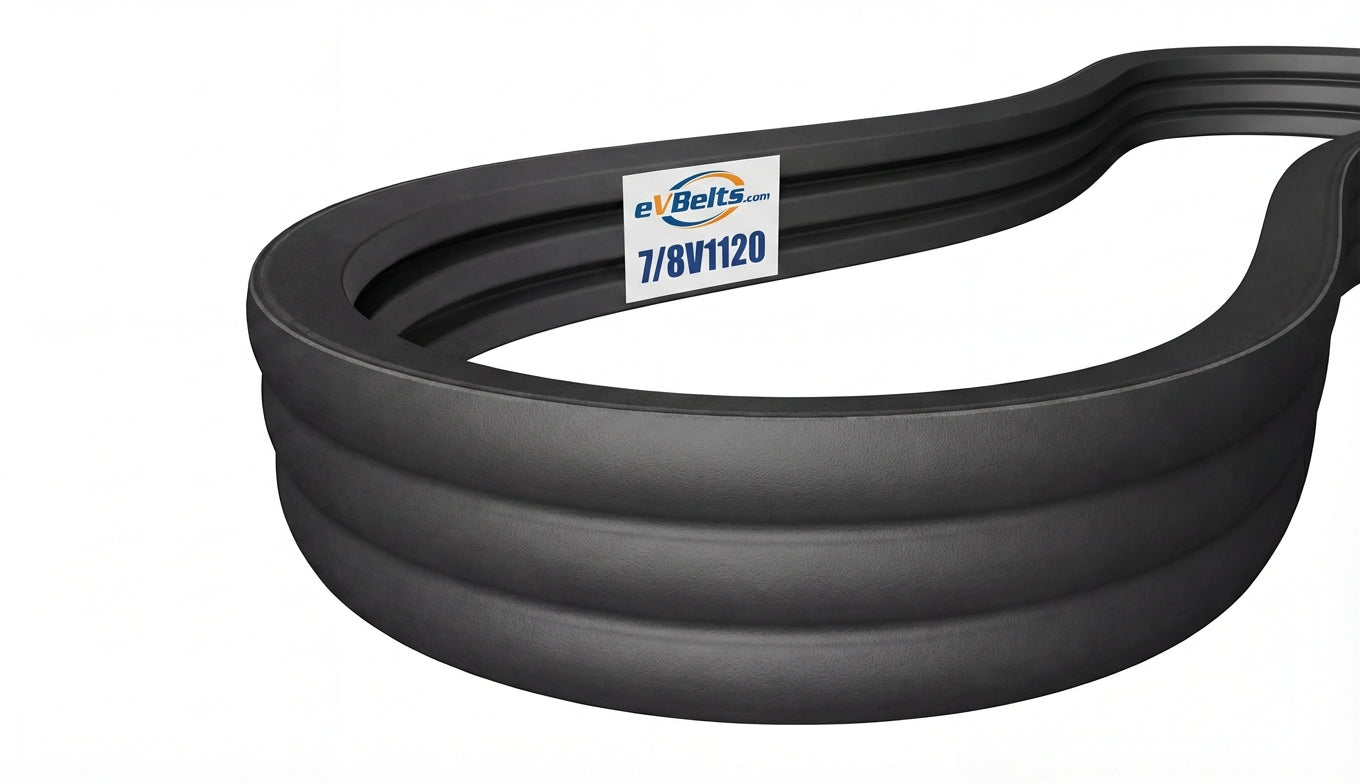

The 7/8V1120 is a factory-joined 7-band 8V banded belt assembly measuring 7.18" wide x 113" long, featuring oil and heat resistant rubber construction.

SKU: 1225057

$651.66

Only 1 Left!

In stock and ready to ship

Estimated delivery between June 23 and June 25.

Technical Specifications

Part Number	7/8V1120
Top Width	7.18 in / 182.37 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	110.5 in / 2806.7 mm
Outside Length	113.0 in / 2870.2 mm
Effective Length	112.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	7
