6/8V3350

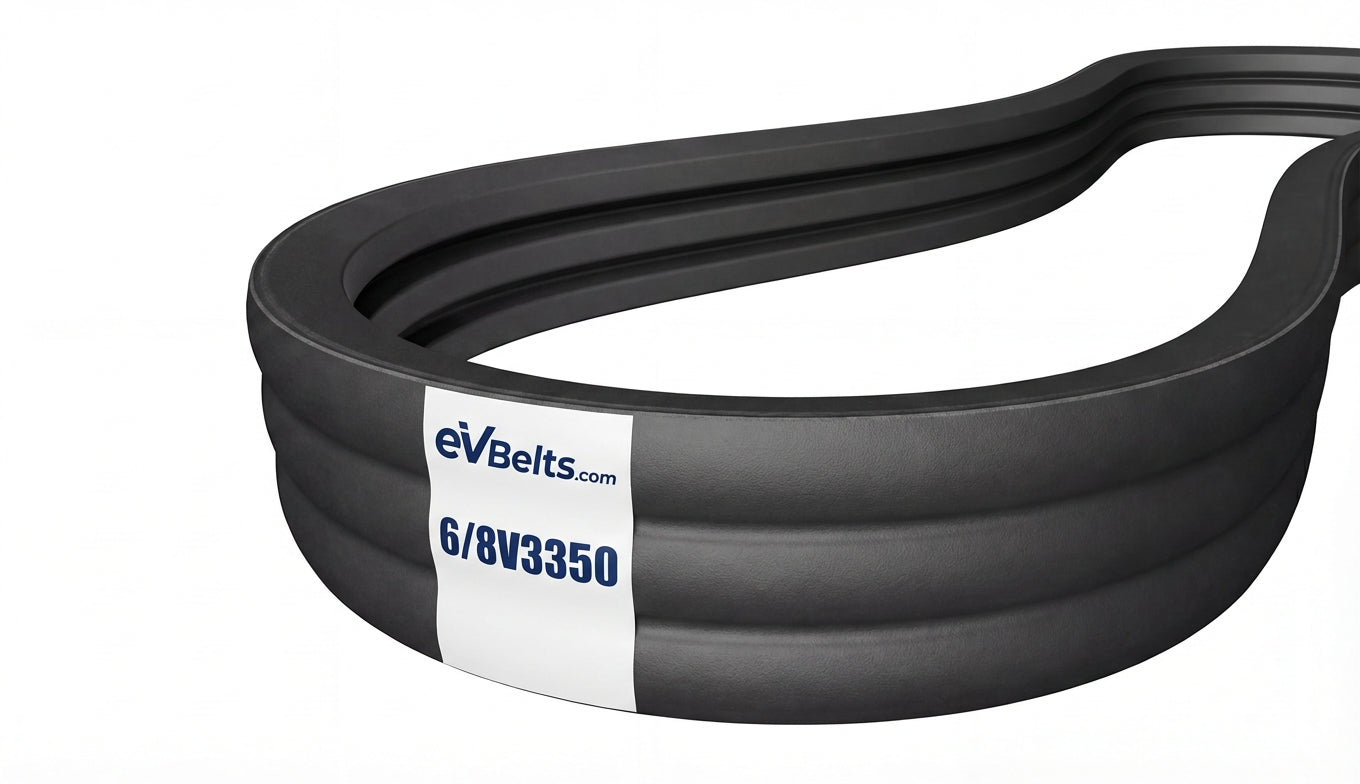

The 6/8V3350 is a factory-joined 6-band 8V banded belt assembly measuring 6.15" wide x 336" long, featuring oil and heat resistant rubber construction.
SKU: 1225045
$1,208.32
120832
0 In Stock
Estimated delivery between June 23 and June 25.
Technical Specifications
| Part Number | 6/8V3350 |
| Top Width | 6.15 in / 156.21 mm |
| Belt Depth | 0.875 in / 22.22 mm |
| Inside Length | 333.5 in / 8470.9 mm |
| Outside Length | 336.0 in / 8534.4 mm |
| Effective Length | 335.0 in |
| Min Sheave Diameter | 12.5 in / 317.5 mm |
| Ribs | 6 |
