5/8V4750

Top Width: 5.12" (130.05mm)
Outside Length: 476" (12090.4mm)
Inside Length: 473.5" (12026.9mm)
Min Pulley Diameter: 12.5"
Configuration: 5-Band Set

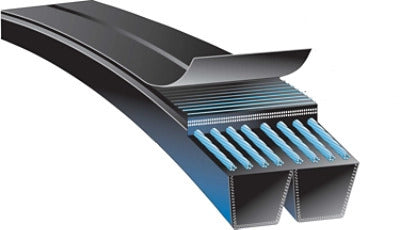

The 5/8V4750 is a factory-joined 5-band 8V banded belt assembly measuring 5.12" wide x 476" long, featuring oil and heat resistant rubber construction.

SKU: 1225020

$1,423.88

Only 4 Left!

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/8V4750
Top Width	5.12 in / 130.05 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	473.5 in / 12026.9 mm
Outside Length	476.0 in / 12090.4 mm
Effective Length	475.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	5
