5/8V2800

Top Width: 5.12" (130.05mm)
Outside Length: 281" (7137.4mm)
Inside Length: 278.5" (7073.9mm)
Min Pulley Diameter: 12.5"
Configuration: 5-Band Set

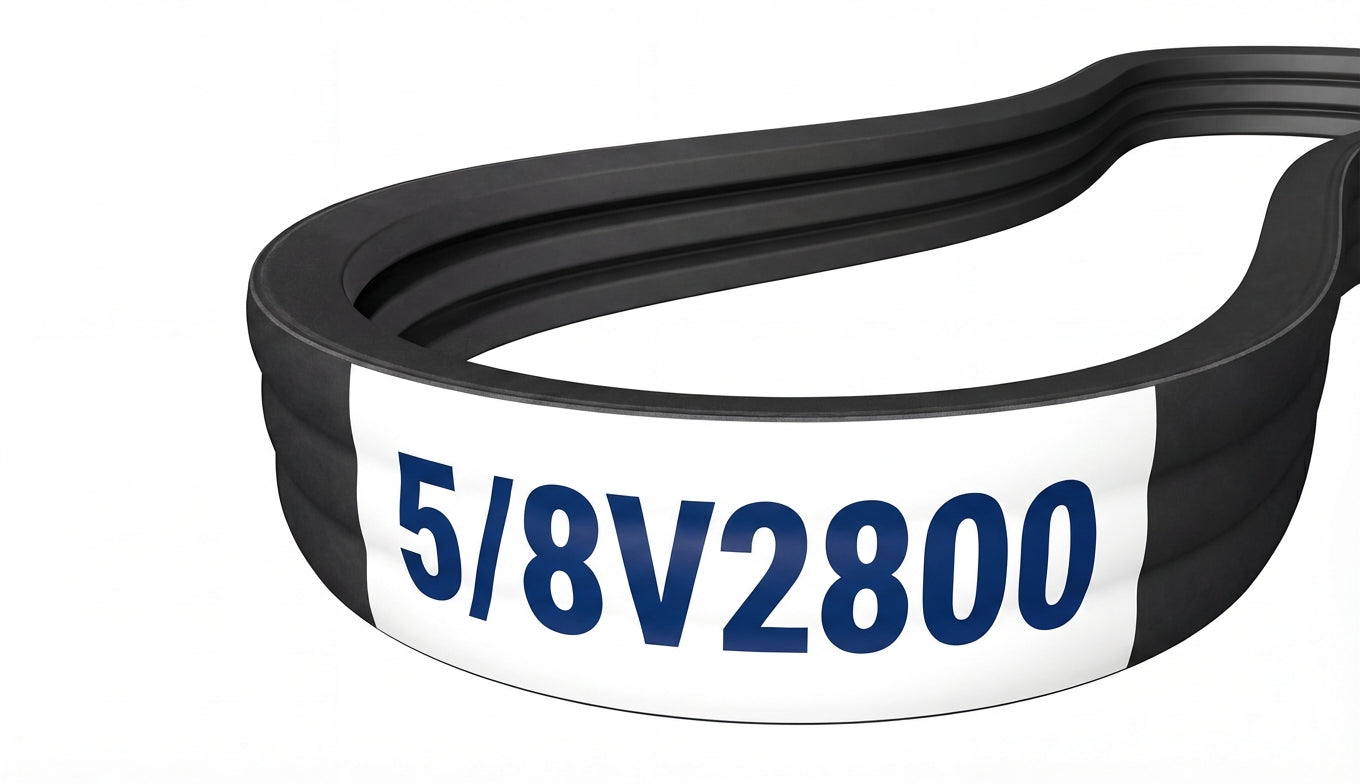

The 5/8V2800 is a factory-joined 5-band 8V banded belt assembly measuring 5.12" wide x 281" long, featuring oil and heat resistant rubber construction.

SKU: 1225011

$751.10

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/8V2800
Top Width	5.12 in / 130.05 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	278.5 in / 7073.9 mm
Outside Length	281.0 in / 7137.4 mm
Effective Length	280.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	5
