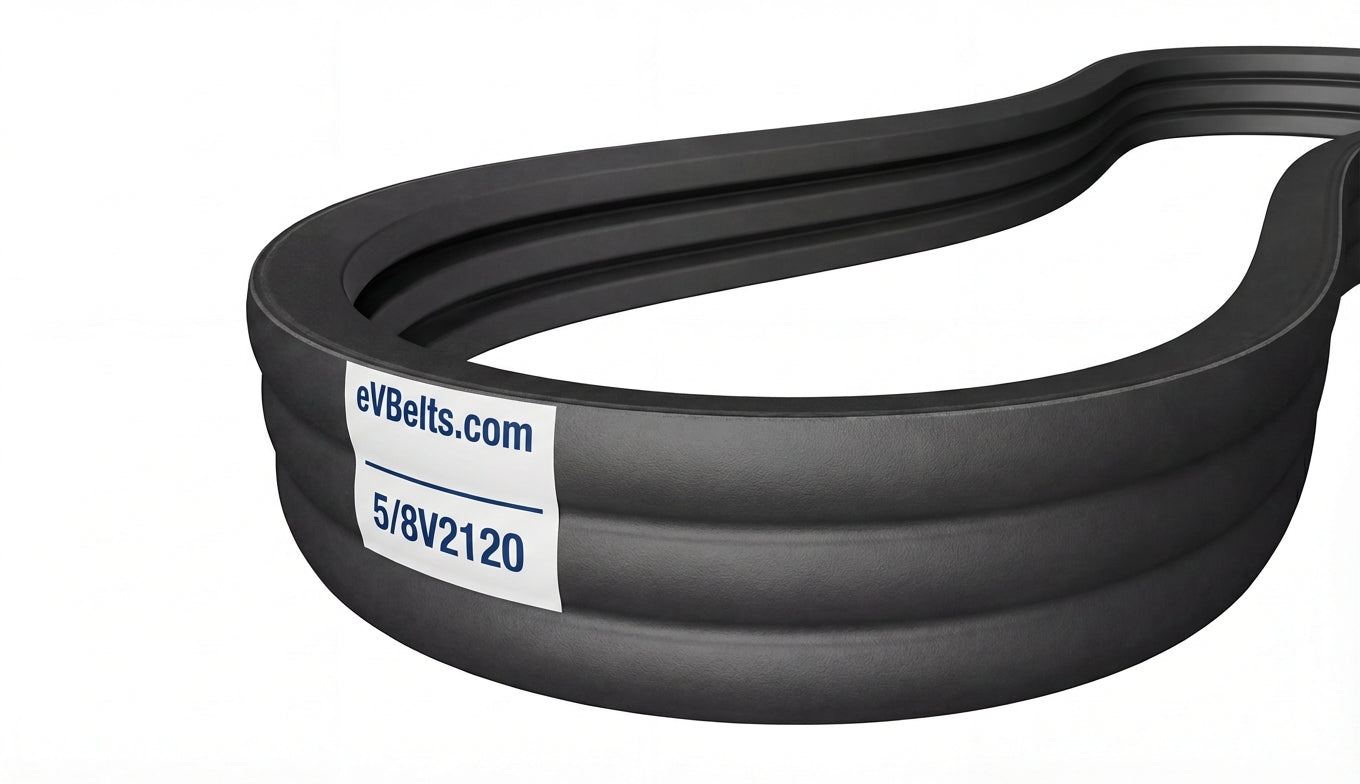

5/8V2120

Top Width: 5.12" (130.05mm)
Outside Length: 213" (5410.2mm)
Inside Length: 210.5" (5346.7mm)
Min Pulley Diameter: 12.5"
Configuration: 5-Band Set

The 5/8V2120 is a factory-joined 5-band 8V banded belt assembly measuring 5.12" wide x 213" long, featuring oil and heat resistant rubber construction.

SKU: 1225006

$569.64

13 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/8V2120
Top Width	5.12 in / 130.05 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	210.5 in / 5346.7 mm
Outside Length	213.0 in / 5410.2 mm
Effective Length	212.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	5
