5/8V1700

Top Width: 5.12" (130.05mm)
Outside Length: 171" (4343.4mm)
Inside Length: 168.5" (4279.9mm)
Min Pulley Diameter: 12.5"
Configuration: 5-Band Set

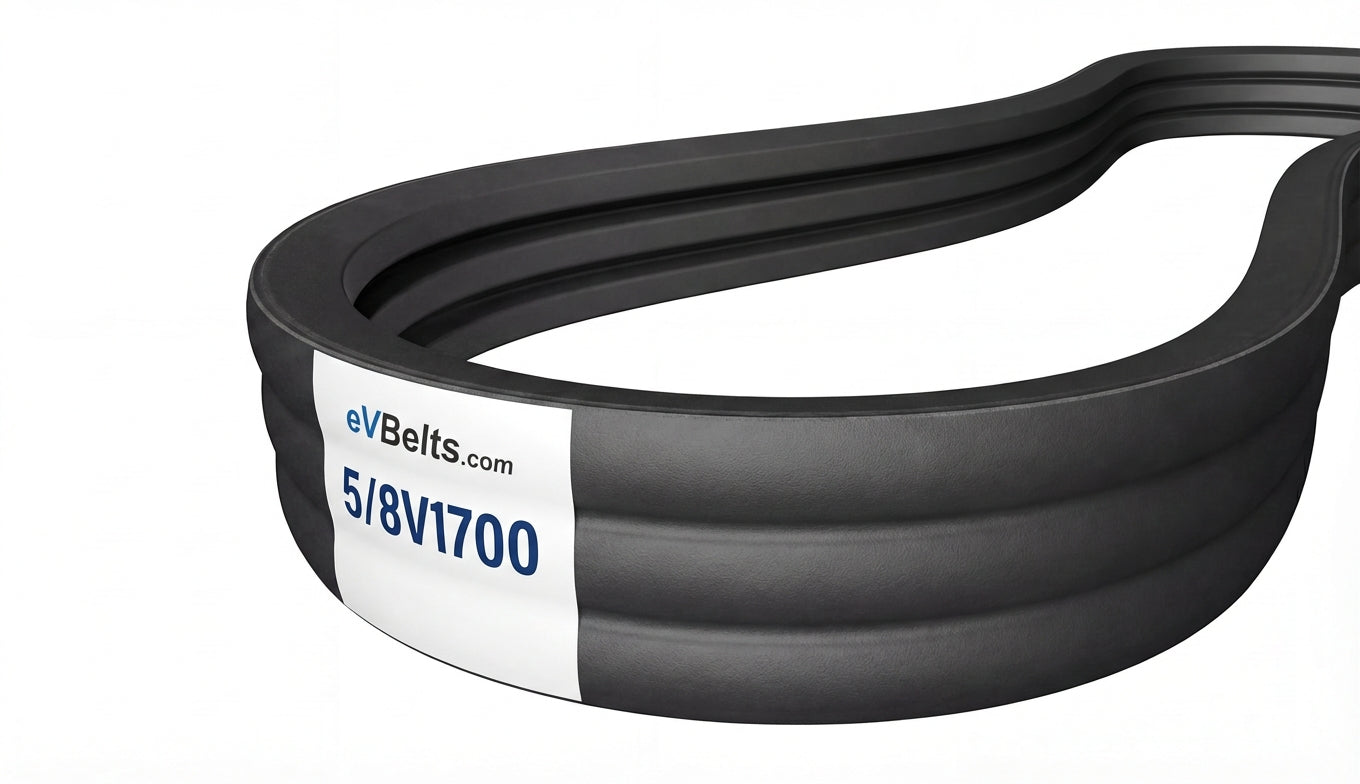

The 5/8V1700 is a factory-joined 5-band 8V banded belt assembly measuring 5.12" wide x 171" long, featuring oil and heat resistant rubber construction.

SKU: 1225002

$456.41

15 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	5/8V1700
Top Width	5.12 in / 130.05 mm
Belt Depth	0.875 in / 22.22 mm
Inside Length	168.5 in / 4279.9 mm
Outside Length	171.0 in / 4343.4 mm
Effective Length	170.0 in
Min Sheave Diameter	12.5 in / 317.5 mm
Ribs	5
